The silent bloc bush range has the following specifications:-
Rubber is high grade SMR based natural rubber
68 and 85 shore hardness
Tearing strength is 24MPa
Rubber is bonded to inner and outer metal sections (it is not assembled unbonded) which means inner and outer stay in position and do not migrate, and the metal sleeve does not rotate in the rubber
Zinc plated yellow or black passivated for resisting corrosion
Cured at temperature and high pressure |
|
| |
|
|
|
|
| |
BUSH SETS FRONT |
|
|
|
 |
Front Suspension Set
(328: All 1985, 1988 (to car 76625 – pre ABS))
|
S328FS |
£132.43 |
|
 |
Front Suspension Set (Hard)
(328: All 1985, 1988 (to car 76625 – pre ABS))
|
S328FH |
£155.23 |
|
| |
|
|
|
|
|
Front Suspension Set
(328: 1988 (from car 76626 – ABS))
|
S328FS88L |
£132.43 |
|
|
Front Suspension Set (Hard)
(328: 1988 (from car 76626 – ABS))
|
S328FH88L |
£155.23 |
|
| |
|
|
|
|
| |
BUSH SETS Rear |
|
|
|
 |
Rear Suspension Set
(328: 1985 (GTB))
|
S328RS |
£144.31 |
|
 |
Rear Suspension Set (Hard)
(328: 1985 (GTB))
|
S328RH |
£167.11 |
|
| |
|
|
|
|
|
Rear Suspension Set
(328: 1985 (GTS))
|
S328RS85S |
£144.31 |
|
|
Rear Suspension Set (Hard)
(328: 1985 (GTS))
|
S328RH85S |
£167.11 |
|
| |
|
|
|
|
|
Rear Suspension Set
(328: 1988 (to car 76625 – pre ABS))
|
S328RS88E |
£144.31 |
|
|
Rear Suspension Set (Hard)
(328: 1988 (to car 76625 – pre ABS)) |
S328RH88E |
£167.11 |
|
| |
|
|
|
|
 |

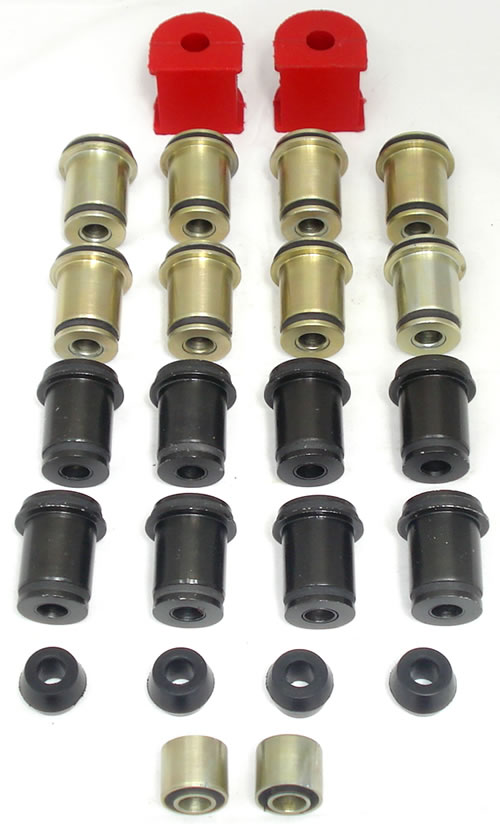

Rear Suspension Set
(328: 1988 (from car 76626 – with ABS)) |
S328RS88L |
£273.18 |
|
 |

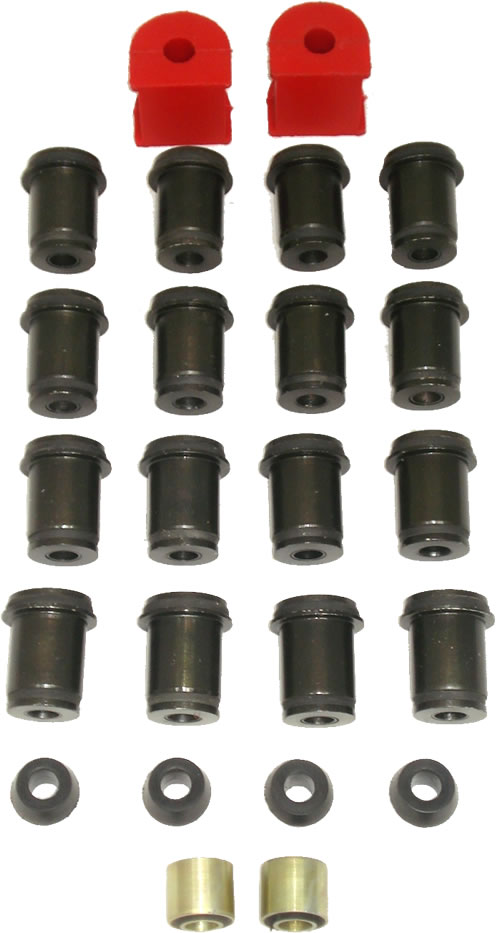

Rear Suspension Set (Hard)
(328: 1988 (from car 76626 – with ABS)) |
S328RH88L |
£295.98 |
|
| |
|
|
|
|
| |
Wheel bearings |
|
|
|
|
Front Wheel Bearing
(328: All) |
112799 |
£229.95 |
|
|
Front Wheel Oil Seal
(328: All)
|
115968 |
£8.95 |
|
| |
|
|
|
|
|
Rear Inner Wheel Bearing
Supersedes: 125934, 145805, RIV AL 35
(328: All) |
101220 |
£15.50
|
|
|
Rear Outer Wheel Bearing
Supersedes: 125935
(328: All) |
144807 |
£54.55 |
|
| |
|
|
|
|
| |
Suspension bushes front |
|
|
|
|
Upper & Lower Front Wishbone Bush, inner
High quality bonded bush
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: All) |
103170 |
£13.95 |
|
|
Upper & Lower Front Wishbone Bush, inner
Hard 85-shore hardness rubber
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: All) |
103170H |
£16.95 |
|
| |
|
|
|
|
|
Upper & Lower Rear Wishbone Bush, inner & outer
High quality bonded bush
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: 1988 (from car 76626 – with ABS)) |
103170 |
£13.95 |
|
|
Upper & Lower Rear Wishbone Bush, inner & outer
Hard 85-shore hardness rubber
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: 1988 (from car 76626 – with ABS)) |
103170H |
£16.95 |
|
 |
|
Torsion Bar D-Rubber
(328: 1985, 1988 (to car 76625)) |
108746 |
£7.95 |
|
|
Torsion Bar D-Rubber
21mm inner diameter
(328: 1988 (from car 76626 – with ABS)) |
130533 |
£9.95 |
|
| |
|
|
|
|
|
Torsion Bar Rubber Front
Supersedes: 64430, 126097
(328: All) |
100984 |
£2.45 |
|
 |
Front Anti Roll Bar Spacer Tubes
(328: 1985, 1988 (from car number 76625))
|
108998 |
£7.70 |
|
| |
|
|
|
|
| |
Suspension bushes rear |
|
|
|
|
Upper & Lower Inner Rear Wishbone Bush
Uprated: bonded bush
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: All) |
103170 |
£13.95 |
|
|
Upper & Lower Inner Rear Wishbone Bush
Hard 85-shore hardness rubber
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: All) |
103170H |
£16.95 |
|
|
|
Upper & Lower Outer Rear Wishbone Bush Assy. Set
Complete set for one hub (4 complete bush assemblies)
Zinc plated
(328: All 1985, 1988 (up to car 76625))
Each complete bush (4 per set) includes 1 of each of:
109902 (107438), 105342 (641216), 101009 (600771),
100796 (94943), 109905 (105339),
100787 (101315, 600750, 660826), 105340 (601684), 105343 (641217), 105341 (601685). |
30808091 |
£136.95 |
|
|
Upper & Lower Outer Rear Wishbone Bush Assy. Set
Complete set for one hub (4 complete bush assemblies)
Stainless steel
(328: All 1985, 1988 (up to car 76625))
Each complete bush (4 per set) includes 1 of each of:
109902 (107438), 105342 (641216), 101009 (600771),
100796 (94943), 109905 (105339),
100787 (101315, 600750, 660826), 105340 (601684), 105343 (641217), 105341 (601685). |
30808090 |
£179.60 |
|
 |
Large Rear Hub Rubber Seal
Supersedes: 641216
(328: All 1985, 1988 (up to car 76625)) |
105342 |
£1.95 |
|
 |
Small Rear Hub Rubber Seal
Supersedes: 641217
(328: All 1985, 1988 (up to car 76625)) |
105343 |
£1.85 |
|
|
Rear Hub Upper And Lower Bolt
(328: All 1985, 1988 (up to car 76625)) |
105344 |
£12.95 |
|
| |
|
|
|
|
|
Upper & Lower Outer Rear Wishbone Bush
Uprated: bonded bush
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: from car 76626) |
103170 |
£13.95 |
|
|
Upper & Lower Outer Rear Wishbone Bush
Hard 85-shore hardness rubber
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(328: from car 76626) |
103170H |
£16.95 |
|
|
|
Torsion Bar Bush
Supersedes: 60220
(328: All)
|
100773 |
£9.95 |
|
|
|
Torsion Bar D-Rubber
(328: 1985 (GTB), All 1988) |
109010 |
£8.50 |
|
|
Torsion Bar D-Rubber
(328: 1985 (GTS)) |
108748 |
£7.50 |
|
|
High Quality Rear Torsion Bar Bracket
Stainless Steel
Supersedes: 64429
(328: All) |
104417 |
£9.86 |
|
|
|
Torsion Bar Rubber Rear
(328: All) |
108244 |
£2.45 |
|
 |
Anti roll bar spacer for rubbers
Supersedes: 107336, 154085
(328: GTB)
|
108294 |
£12.95 |
|
| |
|
|
|
|
| |
Shock absorbers |
|
|
|
|
Front Shock Absorber
Each
CURRENTLY ON MANUFACTURER BACK ORDER
Supersedes: 128177, 130939
(328: up to car 76625 (pre-ABS)) |
133177 |
£305.50 |
|
|
Rear Shock Absorber
Each
(328: up to car 76625 (pre-ABS)) |
128178 |
£246.20 |
|
|
|
Front Shock Absorber Bush
High quality bonded bush
Supersedes: 101051, 640429, 641393
(328: All 1985, 1988 (To car 76625 - pre-ABS. Also from car 76626 with shock abosorber #136884)) |
100809 |
£12.95 |
|
|
Front Shock Absorber Bush
(328: 1988 (From car 76626 - with ABS, with shock absorber #138263)) |
130516 |
£14.95 |
|
| |
|
|
|
|
|
Rear Shock Absorber Bush
High quality bonded bush
Supersedes: 101051, 640429, 641393
(328: All 1985, 1988 (To car 76625 - pre-ABS)) |
100809 |
£12.95 |
|
|
Rear Shock Absorber Bush
(328: 1988 (From car 76626 - with ABS)) |
130516 |
£14.95 |
|
| |
|
|
|
|
| |
Mounts |
|
|
|
|
Front Top Shock Absorber Mount
(328: 1988 (From car #76626)) |
114812 |
£52.80 |
|
| |
|
|
|
|
| |
Road springs |
|
|
|
|
|
Uprated Front Spring GTB/S - PRE ABS, each |
30808165 |
£65.00 |
|
| Uprated Rear Spring GTB/S - PRE ABS, each |
30808180 |
£65.00 |
|
| |
|
|
|
|
| |
Shims |
|
|
|
 |
Shim
|
|
|
|
| 1mm |
101039 |
£1.35 |
|
| 1.5mm |
107338 |
£1.35 |
|
| 2mm |
107339 |
£1.35 |
|
| 2.5mm |
107340 |
£1.35 |
|
| 3mm |
107341 |
£1.35 |
|
| |
|
|
|
|
|
Lower Ball Joint Shim |
|
|
|
| 1.00mm |
164484 |
£2.67 |
|
| 1.2mm |
115073 |
£2.67 |
|
| 1.5mm |
101022 |
£2.67 |
|
| 2.00mm |
164485 |
£2.66 |
|
| |
|
|
|
|
| |
Ball joints |
|
|
|
|
Upper Ball Joint
(328: All) |
FER08005 |
£99.95 |
|
|
Lower Ball Joint
Supersedes: 114462, 101442, 154536, 640427, 641487
(328: All)
|
133944 |
£94.00 |
|
|
Ball Joint Rubber Boot |
30808215 |
£11.60 |
|
| |
|
|
|
|
| |
lock nuts |
|
|
|
|
Rear Hub Shaft Lock Nut
44mm
Use with tool RNT-44
Supersedes: 522670, 700648
(328: All) |
102289 |
£16.20 |
|
 |
Hub Shaft Ring Nut Tool
44mm |
RNT-44 |
£49.50 |
|
| |
|
|
|
|
| |
|
|
|
|
