Gearbox Parts |
|
|
|
|
 |
 |
Main Shaft
1 required
(246: GT Series 1/L) |
522446 |
£381.18 |
|
 |
Lay Shaft
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
522439 |
|
|
 |
 |
1st Gear
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
523334 |
|
|
 |
2nd Gear
1 required
Currently on Manufacturer Back Order
Supersedes: 52335
(246: GT Series 1/L) |
523335 |
|
|
 |
3rd Gear
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
523336 |
|
|
 |
4th Gear
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
523337 |
|
|
 |
5th Gear
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
523338 |
|
|
 |
Reverse Gear
1 required
(246: GT Series 1/L) |
522447 |
£258.71 |
|
| |
|
|
|
|
 |
Secondary Gear Cluster (2nd & 3rd Gears)
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
522742 |
|
|
 |
Secondary Gear Cluster (4th & 5th Gears)
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
522746 |
|
|
| |
|
|
|
|
 |
Worm Gear
1 required
Position: at rear of lay shaft.
(246: GT Series 1/L) |
522747 |
£118.04 |
|
 |
Differential Drive Gear
1 required
Position: next to reverse gear.
Supersedes: 95520162
(246: GT Series 1/L) |
522691 |
£614.12 |
|
| |
|
|
|
|
 |
 |
1st/Reverse Gear Syncro Hub
1 required
(246: GT Series 1/L) |
522846
 |
£560.00 |
|
 |
1st/Reverse Gear Synchro Hub Spyder
1 required
(246: GT Series 1/L) |
522458 |
|
|
 |
2nd/3rd and 4th/5th Gear Syncro Hub
2 required
(246: GT Series 1/L) |
522739
|
£560.00 |
|
 |
2nd/3rd Gear Synchro Hub Spyder
1 required
(246: GT Series 1/L) |
522459 |
|
|
 |
4th/5th Gear Synchro Hub Spyder
1 required
(246: GT Series 1/L) |
522460 |
|
|
|
Synchromesh Ring, each
5 required
#521767
(246: GT Series 1/L) |
24612175 |
£145.42 |
|
 |
Synchro Guide Ring
5 required
Supersedes: 524523
(246: GT Series 1/L) |
522952 |
£488.96 |
|
|
Synchro Hub Clip
5 required
Supersedes: 523557
(246: GT Series 1/L) |
53514 |
£68.00 |
|
| |
|
|
|
|
 |
 |
Front Main Shaft Bearing
1 required
Supersedes: RIV 3DAAPV/32
(246: GT Series 1/L) |
95890309 |
£592.40 |
|
 |
Front Lay Shaft & Centre Main Shaft Bearing
2 required
Supersedes: 101605, 110988, RIV 4DAAPV
(246: GT Series 1/L) |
103030 |
£153.15 |
|
 |
Centre Lay Shaft Bearing
1 required
Supersedes: RIV 5DAAPV, 95890505
(246: GT Series 1/L) |
5DAAPV |
£286.42 |
|
 |
Rear Bearing
2 required
Rear main shaft and rear lay shaft bearing
Supersedes: RIV 3AANON/32, 95890305
(246: GT Series 1/L) |
24612090 |
£139.90 |
|
| |
|
|
|
|
 |
Main Shaft Needle Roller Bearing
4 required
Supersedes: INA K42/17 Selezione 2-4
(246: GT Series 1/L) |
95893015 |
£24.70 |
|
 |
Lay Shaft Needle Roller Bearing
#104255
6 required
Supersedes: INA K45/17 Selezione 2-4
(246: GT Series 1/L) |
30812060 |
£21.20 |
|
| |
|
|
|
|
 |
Ball Bearing
1 required
Supersedes: 90152007, 90.152.007
(246: GT Series 1/L) |
101611 |
£0.42 |
|
| |
|
|
|
|
 |
 |
Rear Main Shaft Lock Nut
1 required
(246: GT Series 1/L) |
522506 |
£53.84 |
|
 |
Front Main Shaft Lock Nut
1 required
Use with tool RNT-50-260
(246: GT Series 1/L) |
522507 |
£77.59 |
|
 |
Front Lay Shaft Lock Nut
1 required
(246: GT Series 1/L) |
522508 |
£76.21 |
|
| |
|
|
|
|
 |
 |
Rear Bearing Carrier 'O' Ring
2 required
Supersedes: OR3275
(246: GT Series 1/L) |
95860086 |
£1.62 |
|
| |
|
|
|
|
 |
 |
Rear Bearing Carrier
2 required
(246: GT Series 1/L) |
522464 |
£49.73 |
|
| |
|
|
|
|
 |
Needle Roller Bearing Spacer Sleeve
2 required
Position: On main shaft, for 4th & 5th gears
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
521122 |
|
|
 |
Needle Roller Bearing Spacer Sleeve
3 required
Position: On lay shaft, for 1st, 2nd & 3rd gears
Currently on Manufacturer Back Order
(246: GT Series 1/L)
|
522257 |
|
|
| |
|
|
|
|
 |
Spacer Between Reverse Gear and Rear Bearing
1 required
(246: GT Series 1/L) |
522512 |
£14.52 |
|
 |
Split Ring, complete
1 required
(246: GT Series 1/L) |
522441 |
£21.03 |
|
 |
1st Gear Spacer
1 required
Supersedes: 522510
(246: GT Series 1/L) |
524251 |
£36.06 |
|
 |
3rd Gear Thrust Washer
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
522511 |
|
|
 |
4th Gear Spacer
1 required
Currently on Manufacturer Back Order
(246: GT Series 1/L) |
522505 |
|
|
| |
|
|
|
|
 |
Clutch Arm Operating Fork Rubber Boot
(246: GT Series 1/L) |
500522 |
£34.95 |
|
| |
|
|
|
|
| |
bELL hOUSING & Drop gears |
|
|
|
 |
Upper Drop Gear
1 required
No longer available. Please call for more information.
(246: GT Series 1/L) |
500589 |
|
|
 |
Middle Drop Gear
1 required
No longer available. Please call for more information.
(246: GT Series 1/L) |
500454 |
|
|
 |
Lower Drop Gear
1 required
No longer available. Please call for more information.
(246: GT Series 1/L) |
500520 |
|
|
| |
|
|
|
|
 |
Upper Drop Gear Bearing
1 required
Supersedes: RIV 3 ADY 32
(246: GT Series 1/L) |
24612035 |
£49.95 |
|
 |
Upper & Lower Drop Gear Needle Roller Bearing
#NK 3520
2 required (1 upper + 1 lower)
(246: GT Series 1/L) |
24612025 |
£23.90 |
|
 |
Upper & Lower Drop Gear Snap Ring
2 required (1 upper + 1 lower)
(246: GT Series 1/L) |
INABR45 |
£6.40 |
|
 |
Upper Drop Gear Spacer
1 required
(246: GT Series 1/L) |
500516 |
£13.85 |
|
 |
Middle Drop Gear Needle Roller Bearing
#HK 3520, O/D 41mm
1 required
(246: GT Series 1/L) |
24612026 |
£23.90 |
|
 |

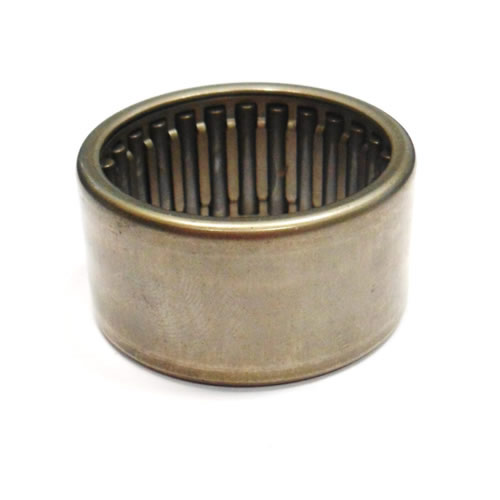

Middle Drop Gear Needle Roller Bearing
#HK 3020, O/D 37mm
1 required
(246: GT Series 1/L) |
24612027 |
£9.86 |
|
 |
Middle Drop Gear Washer
2 required
(246: GT Series 1/L) |
500470 |
|
|
 |
Middle Drop Gear Spacer
1 required
(246: GT Series 1/L) |
500519 |
£40.47 |
|
 |
Lower Drop Gear Bearing
1 required
Supersedes: RIV 4 ADY
(246: GT Series 1/L) |
24612045 |
£39.40 |
|
 |
Bottom Drop Gear Nut
1 required
Use with RNT-56-260
(246: GT Series 1/L) |
500471 |
£61.89 |
|
 |
Clutch Spigot Shaft Oil Seal
1 required
(246: GT Series 1/L) |
95850206 |
£8.42 |
|
 |
Clutch Flange 'O' Ring
1 required
Supersedes: OR 3206
(246: GT Series 1/L) |
95860080 |
£1.36 |
|
 |
Clutch Spigot Shaft Lock Nut
1 required
Use with RNT-50-260
(246: GT Series 1/L) |
500517 |
£50.81 |
|
| |
|
|
|
|
 |
Drop Gears Drain Plug
Magnetic
1 required
Supersedes: 1/4326/540
(246: GT Series 1/L) |
14326540 |
£14.40 |
|
|
Drop Gears Drain Plug Washer
Supersedes: 95119, 10279560
(246: GT Series 1/L)
|
10263460 |
£0.28 |
|
| |
|
|
|
|
|

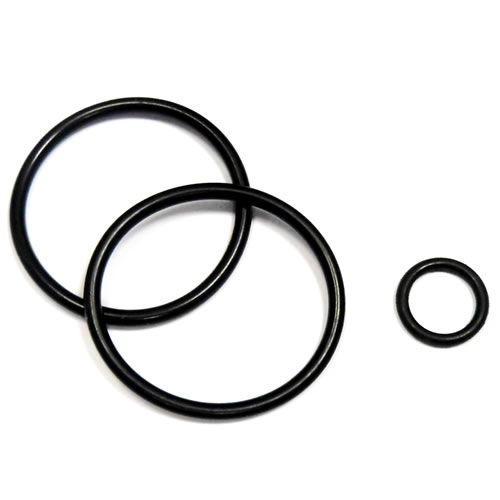

Bell Housing 'O' Ring Set
Includes: 2 x 95860070 (OR 3112) & 1 x 95860042 (OR 2037).
(246: GT Series 1/L) |
24612078 |
£3.70 |
|
| |
|
|
|
|
| |
Gear Selector |
|
|
|
|
1st/Rv Gear Selector Fork
(246: GT Series 1/L) |
522461 |
£232.29 |
|
 |
2nd/3rd Gear Selector Fork
(246: GT Series 1/L) |
523192 |
£294.96 |
|
 |
4th/5th Gear Selector Fork
Supersedes: 522463
(246: GT Series 1/L) |
523193 |
£296.73 |
|
| |
|
|
|
|
 |
Gear Selector
3 required
(246: GT Series 1/L)
|
522465 |
£64.37 |
|
 |
1st/Rv Gear Selector Shaft
(246: GT Series 1/L)
|
522474 |
£130.41 |
|
 |
2nd/3rd Gear Selector Shaft
(246: GT Series 1/L)
|
522442 |
£159.37 |
|
 |
4th/5th Gear Selector Shaft
(246: GT Series 1/L)
|
522475 |
£130.73 |
|
| |
|
|
|
|
 |
Gear Selector/Detent Bush
Supersedes: 53123
(246: GT Series 1/L)
|
100749 |
£39.59 |
|
 |
Gear Selector/Detent Spring
Supersedes: 523899
(246: GT Series 1/L)
|
100750 |
£0.81 |
|
 |
Gear Selector/Detent Retaining Ball Bearing
Supersedes: 93309
(246: GT Series 1/L) |
101612 |
£0.80 |
|
 |
Gear Selector Bush
(246: GT Series 1/L) |
523176 |
£28.66 |
|
 |
Selector Pin
(246: GT Series 1/L) |
103010 |
£10.05 |
|
| |
|
|
|
|
| |
Gearshift parts |
|
|
|
 |
Reverse Light Switch
1 required
Supersedes: 522749
(246: GT Series 1/L) |
95403254 |
£41.44 |
|
 |
Gear Linkage Universal Joint
2 required
Supersedes: 520187, 524508
(246: GT Series 1/L) |
103189 |
£131.93 |
|
 |
Gear Linkage UJ Pin
(246: GT Series 1/L)
|
103309 |
£21.63 |
|
|
Gear Selector Shaft Rubber Boot
1 required
#522722
(246: GT Series 1/L) |
24612185 |
£29.95 |
|
 |
Gearshift Shaft Tube 'O' Ring
Position: end of tube at shift rod entrance
Superesedes: OR 3081
(246: GT Series 1/L) |
95860065 |
£0.60 |
|
|
Gearshift Spacer
(246: GT Series 1/L) |
103313 |
£15.93 |
|
| |
|
|
|
|
| |
Sump |
|
|
|
 |
Engine Sump Drain Plug
Non-Magnetic
2 required
Replaces: 95259, 100826, 522659
(246: GT Series 1/L) |
24616460 |
£24.87 |
|
 |
Engine Sump Drain Plug
Magnetic
2 required
Supersedes: 95259, 522659
(246: GT Series 1/L) |
100826 |
£59.50 |
|
 |
Gearbox Sump Drain Plug
Magnetic
1 required
Supersedes: 95259, 522659
(246: GT Series 1/L) |
100826A
|
£74.80 |
|
 |
Engine Sump Drain Plug Washer
2 required
(246: GT Series 1/L) |
95260 |
£6.68 |
|
| |
|
|
|
|
 |
Gearbox Sump Drain Plug
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(246: GT Series 1/L) |
10275011 |
£1.45 |
|
 |
Gearbox Sump Drain Plug
25mm long
(246: GT Series 1/L) |
10275011-25
|
£31.25 |
|
 |
Long Uprated Gearbox Sump Drain Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
 |
Gearbox Sump Drain Plug
Magnetic
1 required
Supersedes: 523977
(246: GT Series 1/L) |
104280 |
£5.46 |
|
|
Gearbox Sump Drain Plug Washer
Supersedes: 95119, 10279560
1 required
(246: GT Series 1/L) |
10263460 |
£0.28 |
|
| |
|
|
|
|
 |
Transmission Filler/Gearbox Oil Level Control Plug
1 required
Supersedes: 520162, 524146
(246: GT Series 1/L) |
104282 |
£31.10 |
|
|
Transmission Filler/Gearbox Oil Level Control Plug Washer
Supersedes: 520161
1 required
(246: GT Series 1/L) |
102645 |
£1.90 |
|
| |
|
|
|
|
| |
Gaskets |
|
|
|
 |
Gearbox Breather Gasket
(246: GT Series 1/L) |
21091 |
£16.95 |
|
| |
|
|
|
|
| |
speedo drive |
|
|
|
 |
Speedo Drive O Ring
(246: GT Series 1/L) |
95860045 |
£0.84 |
|
| |
|
|
|
|
| |
speedometer cable |
|
|
|
|
Speedometer cable
Left hand drive and right hand drive |
24612005 |
£49.80 |
|
| |
|
|
|
|
| |
Circlips |
|
|
|
 |
Gearbox Dowl Circlip
2 required
No longer available. Please call for more information.
(246: GT Series 1/L) |
100589 |
|
|
| |
|
|
|
|
| |
Oil Shield |
|
|
|
 |
Horizontal Bulkhead
(246: GT Series 1/L) |
522708 |
£66.59 |
|
 |
Right Vertical Bulkhead
(246: GT Series 1/L) |
522709 |
£24.64 |
|
 |
Left Vertical Bulkhead
(246: GT Series 1/L) |
522710 |
£24.64 |
|
| |
|
|
|
|
| |
tools |
|
|
|
 |
Ring Nut Tool
50mm |
RNT-50 |
£56.50 |
|
 |
Ring Nut Tool
50mm
260mm deep to fit over shaft
4.6mm wide fingers
|
RNT-50-260 |
£140.00 |
|
 |
Gearbox Nut Removal Tool
56mm
260mm deep to fit over shaft
|
RNT-56-260 |
£96.00 |
|
 |
Gearbox Nut Removal Tool
56mm, 75mm Deep |
RNT-56-75
|
£84.00 |
|
 |
Drop Gear Nut Removal Tool
44mm |
RNT-44 |
£56.50 |
|
| |
|
|
|
|
| |
|
|
|
|
