Gearbox Parts |
|
|
|
|
 |
 |

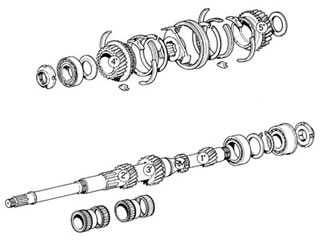

Main Shaft
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E & GTS) |
523902 |
|
|
 |
Lay Shaft
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E & GTS) |
523903 |
|
|
 |
 |
1st Gear
52mm ID
1 required
(246: GT Series 3/E & GTS (until car no. 5864)) |
523926 |
£509.10 |
|
 |

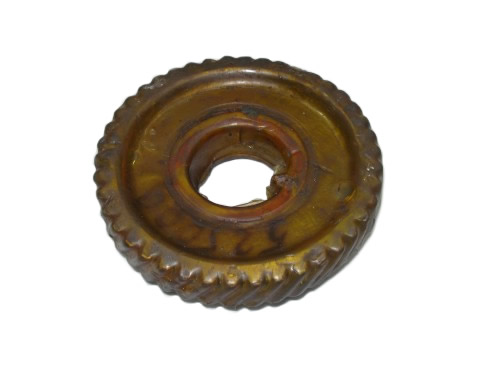

1st Gear
50mm ID
1 required
Supersedes: 525008
(246: GT Series 3/E & GTS (from car no. 5866)) |
607E-525009 |
£608.33 |
|
 |
2nd Gear
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E, GTS) |
523927 |
£315.18 |
|
 |
3rd Gear
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E, GTS) |
523928 |
£302.82 |
|
 |

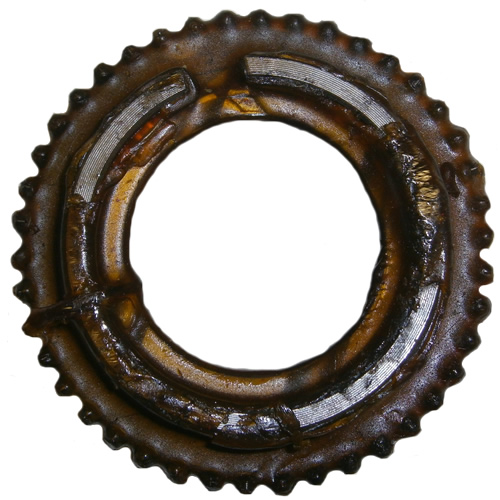

4th Gear
1 required
(246: GT Series 3/E, GTS) |
523929 |
£484.04 |
|
 |
5th Gear
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E, GTS) |
523930 |
|
|
 |

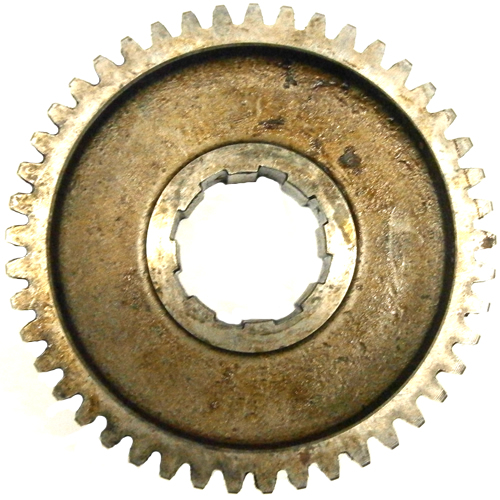

Reverse Gear
1 required
(246: GT Series 3/E, GTS) |
523904 |
£138.12 |
|
 |

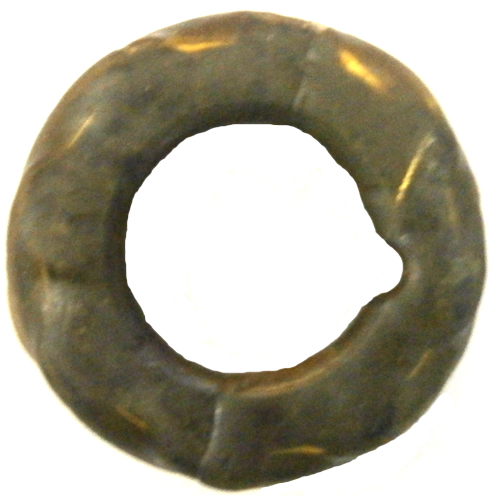

Worm Gear
1 required
Position: at rear of lay shaft.
(246: GT Series 3/E & GTS) |
523923 |
£93.00 |
|
 |
Differential Drive Gear
1 required
Position: next to reverse gear.
Currently on Manufacturer Back Order
Supersedes: 95520163
(246: GT Series 3/E, GTS) |
523912 |
|
|
| |
|
|
|
|
 |
 |

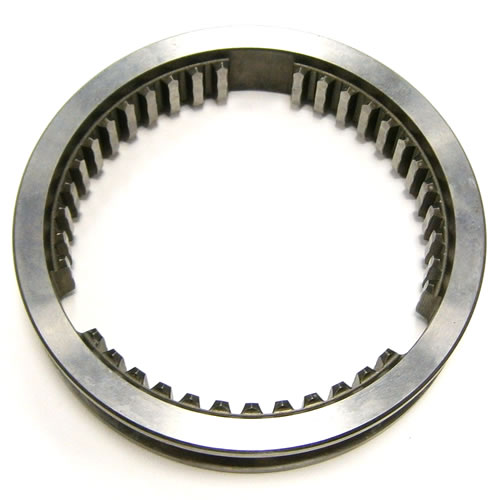

Syncro Hub, 12mm channel
Supersedes: 524901 |
104973 |
£640.00 |
|
Syncro Hub, 13mm channel
Supersedes: 524901
3 required
Check selector fork size to decide which hub you require.
(246: GT Series 3/E & GTS (check selector fork size)) |
100739 |
£640.00 |
|
 |
1st/Reverse Gear Synchro Hub Spyder
1 required
(246: GT Series 3/E, GTS) |
523967 |
£388.96 |
|
 |
2nd/3rd Gear Synchro Hub Spyder
1 required
(246: GT Series 3/E, GTS) |
523968 |
£763.15 |
|
 |

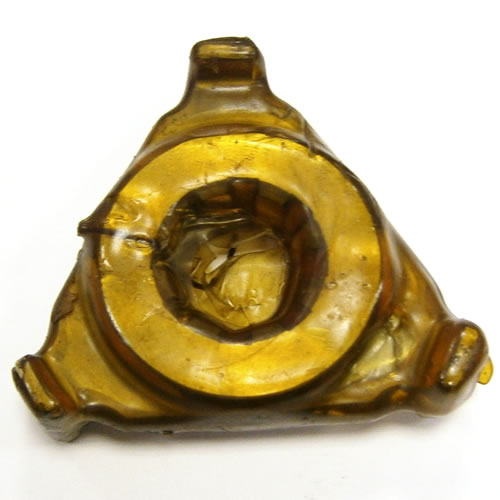

4th/5th Gear Synchro Hub Spyder
1 required
(246: GT Series 3/E, GTS) |
523969 |
£408.46 |
|
|
Synchromesh Ring, each
5 required
Supersedes: 523548
(246: GT Series 3, GTS) |
100720 |
£145.81 |
|
 |

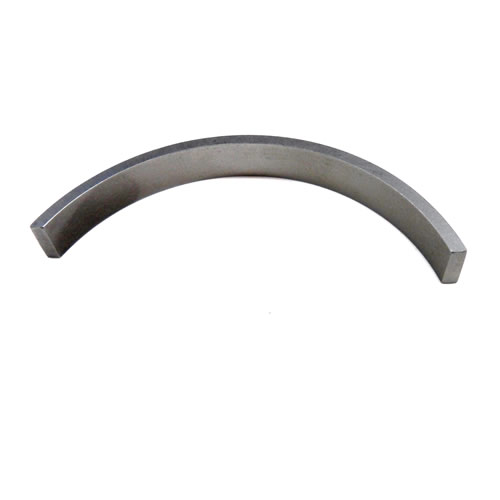

Locking Segment, per half
2 required
Position: next to 1st gear.
Supersedes: 524523
(246: GT Series 3/E & GTS) |
103593
|
£49.95 |
|
 |

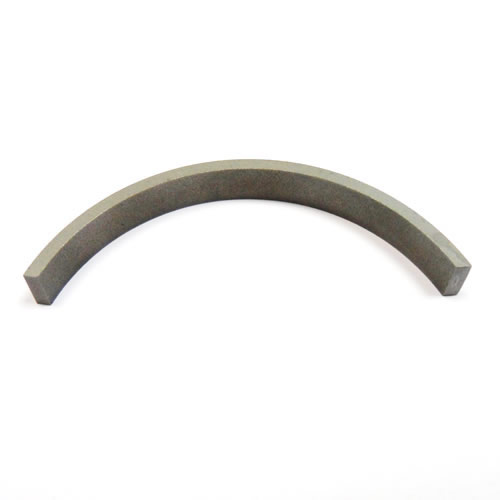

Locking Segment, per half
8 required
Positions: between 2nd & 3rd and between 4th & 5th gears.
Supersedes: 524523
(246: GT Series 3/E & GTS) |
100721 |
£75.40 |
|
 |

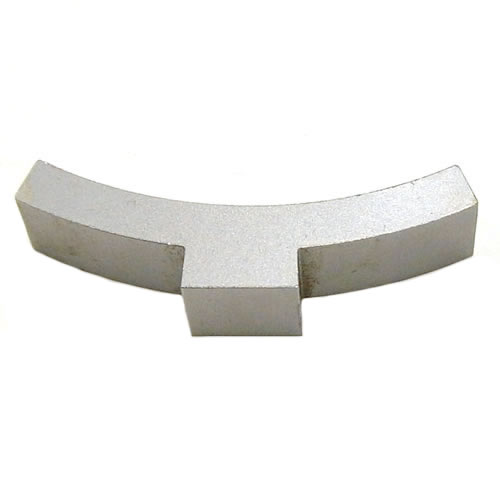

Syncro Key
5 required
Supersedes: 523554
(246: GT Series 3/E & GTS) |
100718
|
£69.95 |
|
 |

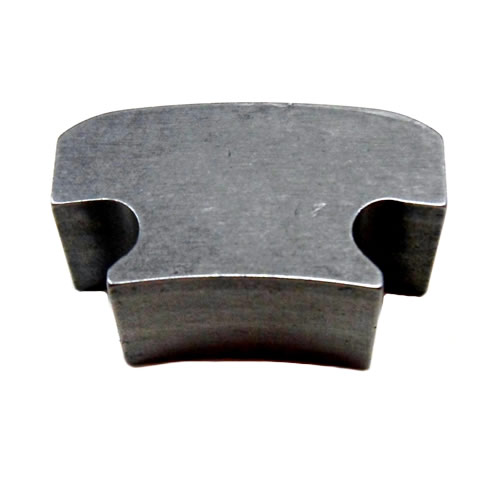

Syncro Lock
5 required
Supersedes: 523555
(246: GT Series 3/E & GTS) |
100719 |
£24.97 |
|
|

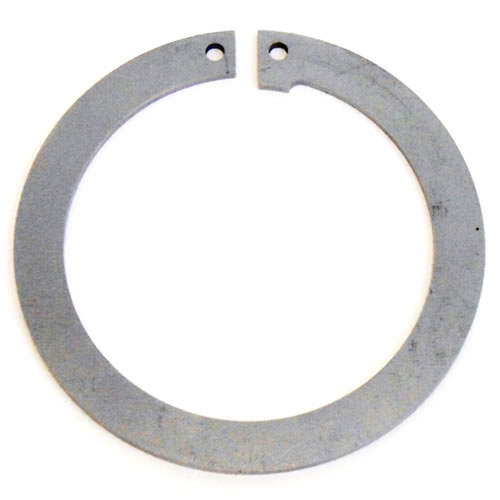

Synchro Hub Clip
5 required
Supersedes: 523557
(246: GT Series 3, GTS) |
100722 |
£67.50 |
|
| |
|
|
|
|
 |
 |
Front Bearing
#104257 (Supersedes: 104207, 108656, RIV DAPV)
2 required
Front main shaft and front lay shaft bearing
(246: GT Series 3/E & GTS) |
30812065 |
£129.60 |
|
 |
Cantre Main Shaft Bearing
#95893020
1 required
Supersedes: DURKOPP NAF 45X72X20C3
(246: GT Series 3/E & GTS) |
24612135 |
£87.53 |
|
 |
Centre Lay Shaft Bearing
#95890505
1 required
Position: next to 3rd gear
(246: GT Series 3/E, GTS) |
24612110 |
£286.42 |
|
 |
Rear Bearing
2 required
Rear main shaft and rear lay shaft bearing
(246: GT Series 3/E, GTS) |
103042 |
£96.74 |
|
 |
Needle Roller Bearing
#103032
2 required per gear
Position: 1st: (246: GT Series 3/E & GTS (until car no. 5864))
Position: 2nd, 3rd, 4th & 5th gears: (246: All GT Series 3/E & GTS) |
24612100 |
£27.17 |
|
 |
Needle Roller Bearing
#104712
1 required per gear
Position: 1st gear: (246: GT Series 3/E & GTS (from car no. 5866)) |
24612120 |
£18.93 |
|
 |
1st Gear Bearing
#105299
1 required
(246: GT Series 3/E & GTS (from car no. 5866) |
24612095 |
£9.95 |
|
 |
Ball Bearing
1 required
Supersedes: 90152007, 90.152.007
(246: GT Series 3/E, GTS) |
101611 |
£0.42 |
|
| |
|
|
|
|
 |
|
Lock Nut
Right Hand Thread
2 required
Positions: front main shaft and rear lay shaft lock nut.
Use with tool RNT-56
Supersedes: 104352, 524260
(246: GT Series 3/E, GTS) |
104252 |
£36.00 |
|
 |
Rear Main Shaft Lock Nut
Left Hand Thread
1 required
Use with tool RNT-56
Supersedes: 524259
(246: GT Series 3/E, GTS) |
104253 |
£39.00 |
|
| |
|
|
|
|
 |
 |

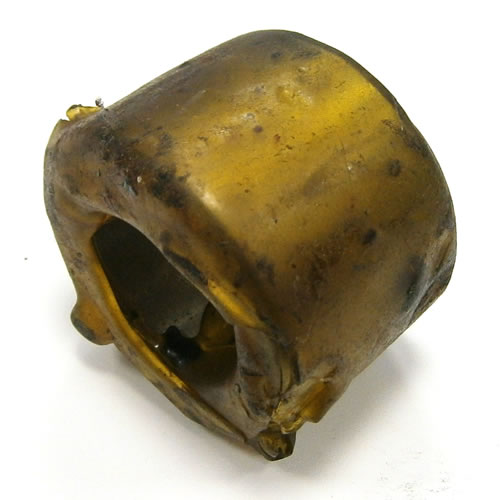

Needle Roller Bearing Spacer Sleeve
1 required per gear
Position: 1st gear: (246: GT Series 3/E & GTS (until car no. 5864))
Position: 4th gear: (246: GT Series 3/E & GTS) |
523918 |
£95.34 |
|
 |

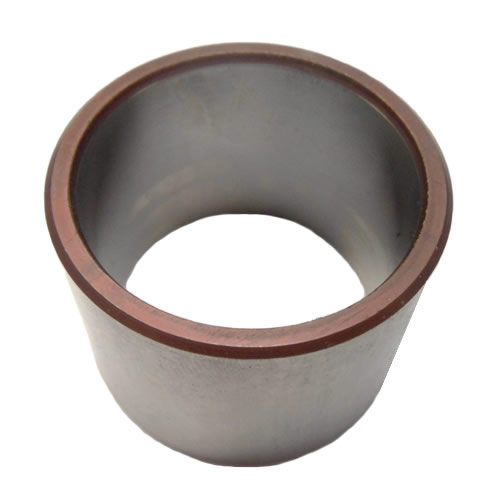

Needle Roller Bearing Spacer Sleeve
1 required per gear
Position: 1st gear: (246: GT Series 3/E & GTS (from car no. 5866))
|
524897 |
£71.89 |
|
 |
Needle Roller Bearing Spacer Sleeve
1 required per gear
Position: 3rd & 5th gears
(246: GT Series 3/E & GTS)
Currently on Manufacturer Back Order |
523917 |
£48.72 |
|
| |
|
|
|
|
 |
1st Gear Spacer
1 required
(246: GT Series 3/E & GTS (until car no. 5864)) |
523913
|
£35.20 |
|
| |
|
|
|
|
 |
1st Gear Spacer
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E & GTS (from car no. 5866)) |
524896 |
£33.27 |
|
 |

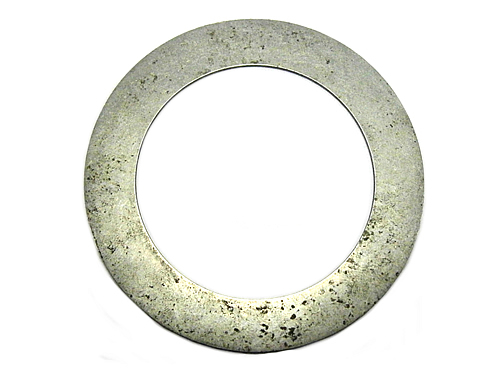

1st Gear Spacer Washer
1 required
Supersedes: 95892835
(246: GT Series 3/E & GTS (from car no. 5866) |
105300 |
£3.70 |
|
| |
|
|
|
|
 |

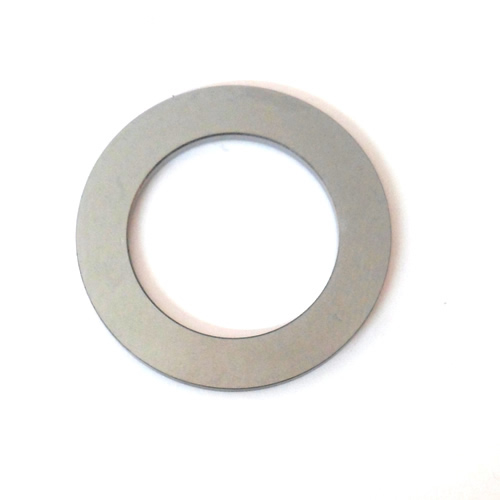

3rd Gear Spacer
1 required
(246: GT Series 3/E, GTS) |
523916
|
£34.65 |
|
|
4th Gear Spacer
1 required
(246: GT Series 3/E & GTS) |
523913
|
£35.20 |
|
 |

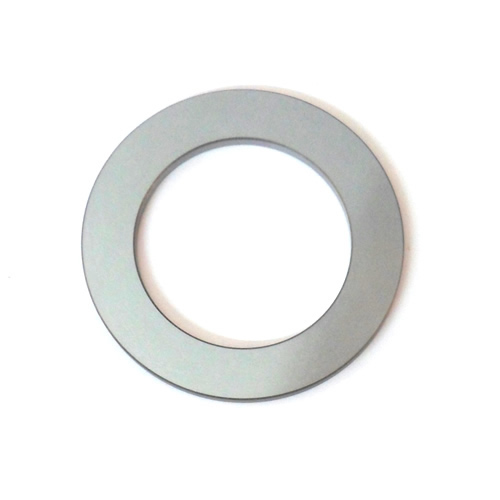

5th Gear Spacer
1 required
(246: GT Series 3/E, GTS) |
523915
|
£21.45 |
|
| |
|
|
|
|
 |

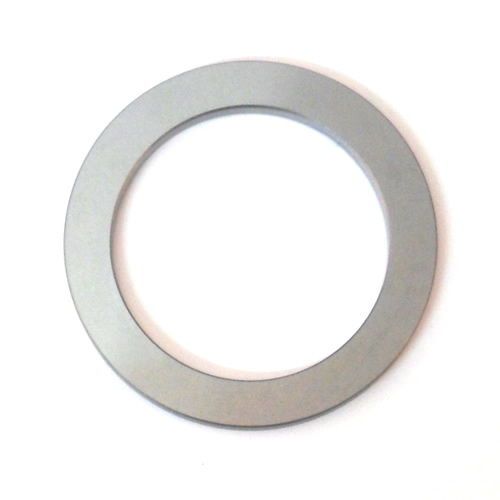

Main Shaft Rear Spacer
1 required
Position: in between rear and centre main shaft bearings
(246: GT Series 3/E, GTS) |
523914
|
£35.20 |
|
|
2.4mm Spacer
(246: GT Series 3/E, GT Coupe & Spyder) |
106088 |
£17.66 |
|
| |
|
|
|
|
 |
Rear Main Shaft Circlip
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E & GTS) |
95892831 |
|
|
 |

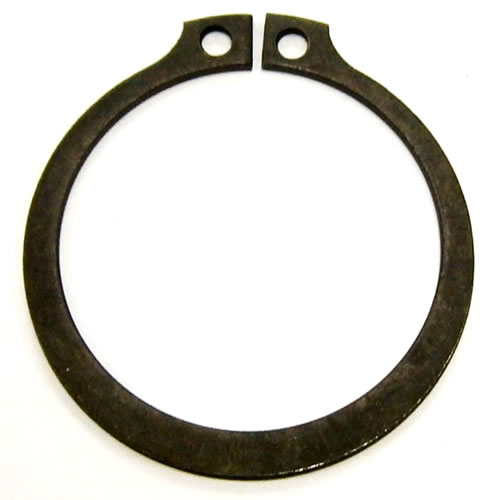

Front Lay Shaft Circlip
1 required
(246: GT Series 3/E & GTS) |
11068376 |
£0.52 |
|
 |

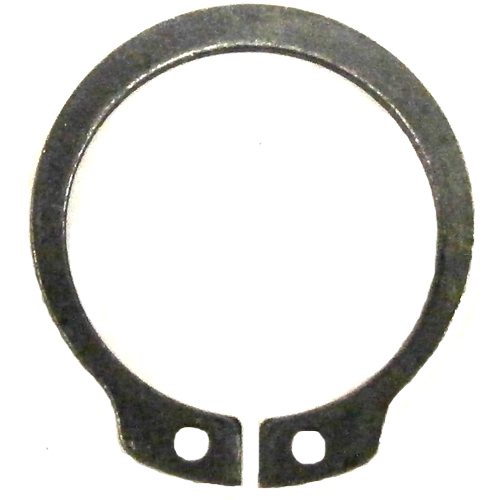

Rear Lay Shaft Circlip
1 required
(246: GT Series 3/E & GTS) |
11067376 |
£1.27 |
|
| |
|
|
|
|
 |
Gearbox Differential Housing Washer
Supersedes: 523924
(246: Dino GT Series 1 & 3) |
104198 |
£8.08 |
|
 |
Gearbox Differential Housing Spacer
Supersedes: 523925
(246: Dino GT Series 1 & 3) |
104199 |
£4.79 |
|
 |
 |
Selector Shaft Rod
(246: GT Series 3/E, GTS) |
523958 |
£126.00 |
|
 |
Reverse Gear Idler Shaft
(246: GT Series 3/E, GTS) |
524591 |
£139.78 |
|
 |
Selector Pin
(246: GT Series 3/E, GTS) |
103010 |
£10.05 |
|
| |
|
|
|
|
| |
bELL hOUSING & Drop gears |
|
|
|
|
Drop Gear Set
Includes #500721, #500722 & #500723
Precision ground after heat treatment to ensure minimum run-out and smooth operation. Manufactured to exacting standards that surpasses OEM specification.
(246: GT Series 3/E, GTS) |
24612009
|
£940.00 |
|
| |
|
|
|
|
 |
Middle Drop Gear Bearing
#103093
2 required
Supersedes: DURKOPP ANK 3047
(246: GT Series 3/E, GTS) |
24612020 |
£9.95 |
|
 |
Middle Drop Gear Needle Roller Bearing
#95893021
Series 2 & 3
Supersedes: DURKOPP RNA 4905
(246: GT Series 3/E, GTS) |
24612030 |
£24.68 |
|
 |
Lower Drop Gear Bearing
#103990 & 126234
1 required
Supersedes: RIV 6 DBVP 25, RIV 6 DBPV 25
(246: GT Series 3/E, GTS (Up to 04828)) |
24612010 |
£162.29 |
|
 |

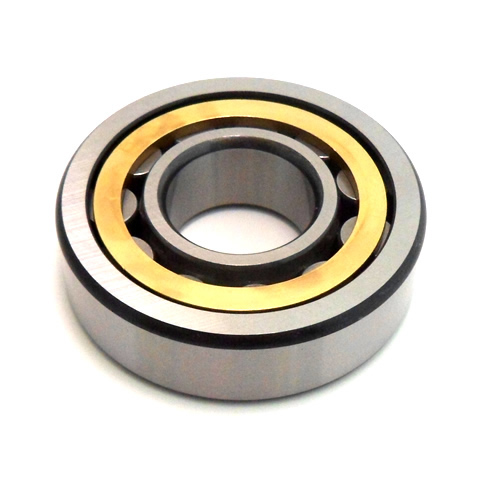

Lower Drop Gear Bearing
(246: GT Series 3/E, GTS (From 04830)) |
95890608 |
£59.82 |
|
 |
Lower Drop Gear Inner Spacer
8.1mm
(246: GT Series 3/E, GTS) |
500727 |
£16.44 |
|
 |

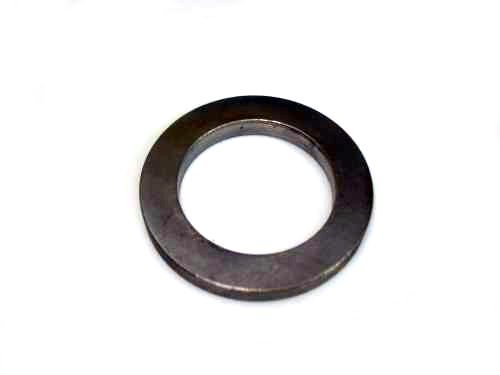

Lower Drop Gear Outer Spacer
4.1mm
(246: GT Series 3/E, GTS)
|
500784 |
£22.80 |
|
 |
Lower Drop Gear Circlip
Supersedes: 11061075, 17061076
(246: GT Series 3/E, GTS)
|
11061076 |
£1.18 |
|
| |
|
|
|
|
|

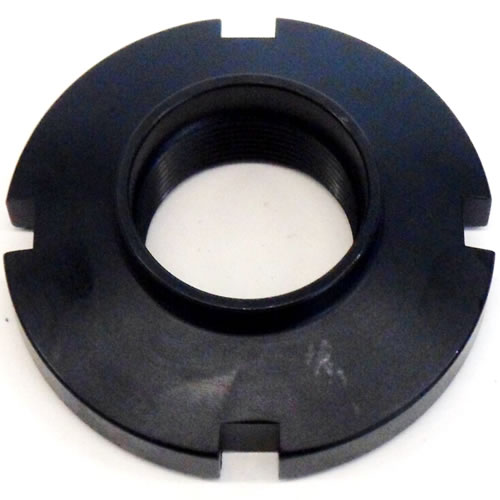

Upper & Lower Drop Gear (Transfer Gear) Lock Nut
Use with tool RNT-44
2 required
(246: GT Series 3/E, GTS) |
500753 |
£28.00 |
|
 |
Drop Gear Housing Filler Plug
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(246: GT Series 3/E, GTS) |
10275011 |
£1.45 |
|
 |
Drop Gear Housing Filler Plug
25mm long
(246: GT Series 3/E, GTS) |
10275011-25
|
£31.25 |
|
 |
Long Uprated Drop Gear Housing Filler Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
| |
|
|
|
|
 |
Clutch Shaft Bearing
#95892500
1 required
Supersedes: RIV 608976 B
(246: GT Series 3/E, GTS) |
24612040 |
£98.60 |
|
| |
|
|
|
|
|

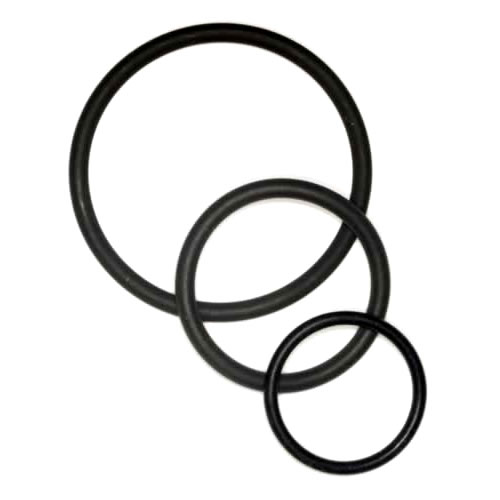

Bell Housing 'O' Ring Set
Includes: 103775 (OR 2068), 104214 (OR 3087) & 104756 (OR 3143).
(246: GT Series 3/E, GTS) |
24612080 |
£3.25 |
|
| |
|
|
|
|
| |
Spigot Shaft |
|
|
|
 |
Spigot Shaft Oil Seal
1 required
(246: GT Series 3/E, GTS) |
95850213 |
£2.40 |
|
 |
Spigot Shaft 'O' Ring
#95860083
1 required
Supersedes: OR 3268
(246: GT Series 3/E, GTS) |
24612060 |
£1.10 |
|
| |
|
|
|
|
| |
Gearshift parts |
|
|
|
 |

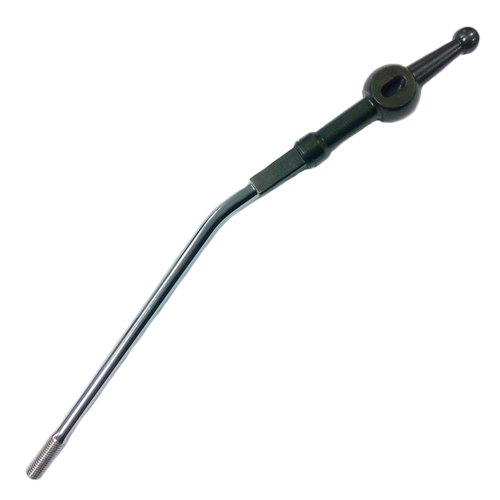

Gear Lever
(246: GT Series 3/E, GTS)
|
523944
|
£580.00 |
|
 |
Gear Lever Ball Joint Seat Bush
Supersedes: 104316, 108214, 521754
(246: GT Series 3/E, GTS)
|
127446 |
£13.63 |
|
 |
Reverse Light Switch
1 required
Currently on Manufacturer Back Order
Supersedes: 103420, 524509
(246: GT Series 3/E & GTS (from car 3100)) |
115980 |
£35.65 |
|
|
Reverse Light Switch
Supersedes: 103420, 524509
(246: GT Series 3/E & GTS (from car 3100))
|
115980/A |
£120.25 |
|
 |

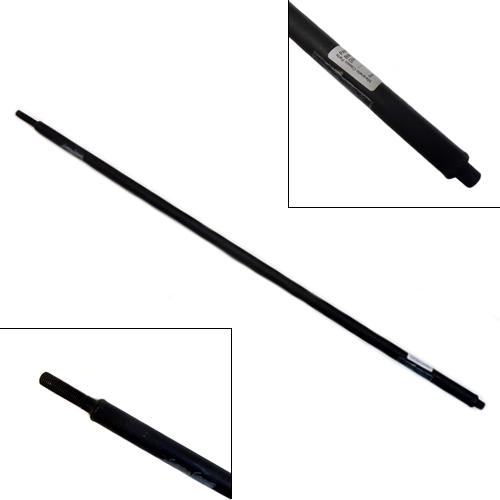

Gear linkage Rod
Currently on Manufacturer Back Order
(246: All)
|
523946 |
£102.72 |
|
 |
Gear Linkage Universal Joint
Supersedes: 524508, 520187
(246: All) |
103189 |
£131.93 |
|
|
Gear Linkage Rubber Boot
#522722 |
24612185 |
£29.95 |
|
 |
Gear Linkage Split Pin
Supersedes: 10734201
D2 x 12mm
|
10734208 |
£0.54 |
|
|
Gearbox Shift 'O' Rings
(246: Series 3/E) |
24612190 |
£0.69 |
|
 |
| |
|
|
|
Gear Linkage 'O' Ring
1 required
Supersedes: OR 4112
(246: GT Series 3/E, GTS) |
105556 |
£1.95 |
|
|
Gear Linkage 'O' Ring
1 required
Supersedes: OR 4100
(246: GT Series 3/E, GTS) |
105557 |
£0.50 |
|
 |
Gear Linkage 'O' Ring
2 required
Supersedes: 101026, OR 4081
(246: GT Series 3/E, GTS) |
105558 |
£0.96 |
|
| |
|
|
|
|
 |
Gearshift Shaft 'O' Ring
1 required
Supersedes: OR 3106
(246: GT Series 3/E, GTS) |
95860067 |
£0.80 |
|
|
Gearshift Shaft 'O' Ring
1 required
Supersedes: OR 3118
(246: GT Series 3/E, GTS) |
95860071 |
£0.95 |
|
 |
Gearshift Shaft Tube 'O' Ring
Position: end of tube at shift rod entrance
1 required
Superesedes: OR 3081
(246: All) |
95860065 |
£0.60 |
|
| |
|
|
|
|
| |
SELECTOR FORKS |
|
|
|
 |

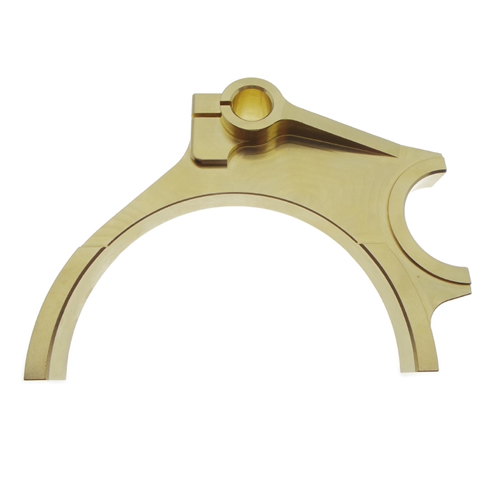

1st/Rv Gear Selector Fork
For hubs requiring 12mm Finger Width
(246: GT Series 3/E (check size)) |
523964
|
£320.00 |
|
 |

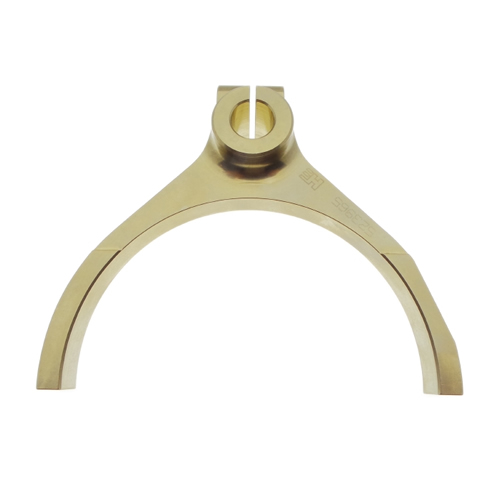

2nd/3rd Gear Selector Fork
For hubs requiring 12mm Finger Width
(246: GT Series 3/E (check size)) |
523965 |
£295.00 |
|
 |

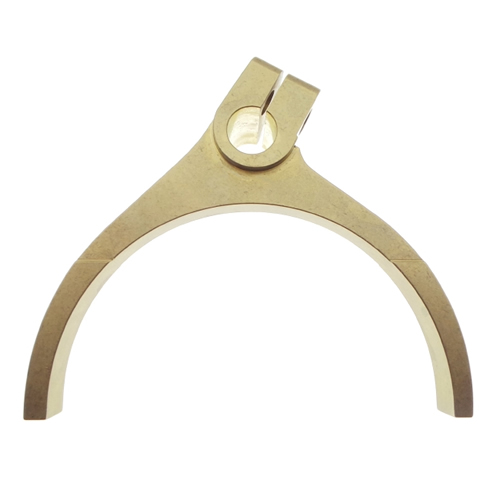

4th/5th Gear Selector Fork
High quality, improved material.
For hubs requiring 12mm Finger Width
(246: GT Series 3/E (check size)) |
523966 |
£295.00 |
|
|
 |

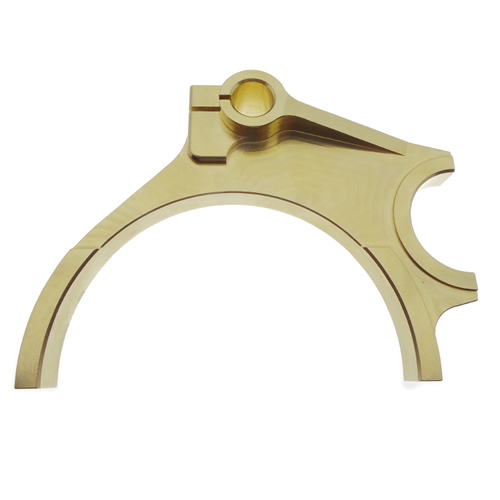

1st/Rv Gear Selector Fork
13mm Wide Fingers
(246: GT Series 3/E (check size)) |
524902
|
£320.00 |
|
 |

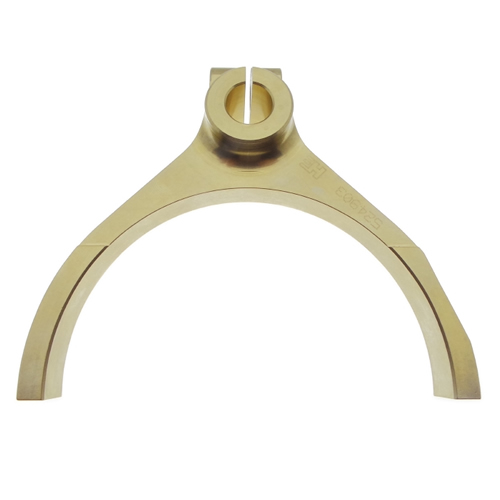

2nd/3rd Gear Selector Fork
13mm Wide Fingers
(246: GT Series 3/E (check size)) |
524903
|
£295.00 |
|
 |

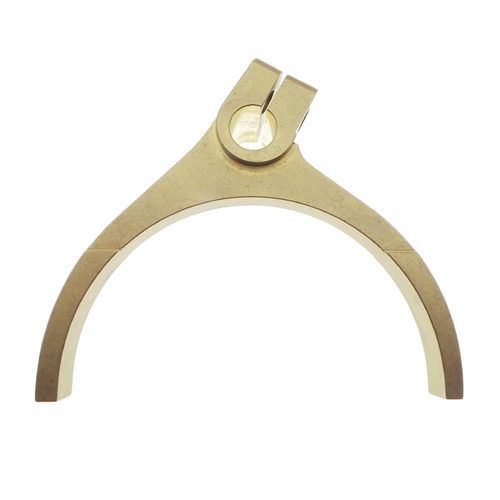

4th/5th Gear Selector Fork
High quality, improved material.
13mm Wide Fingers
(246: GT Series 3/E (check size)) |
524904 |
£295.00 |
|
| |
|
|
|
|
| |
gear selector/detent |
|
|
|
 |
Gear Selector/Detent Bush
Supersedes: 523975
(246: GT Series 3, GTS)
|
104277 |
£36.20 |
|
 |
Gear Selector/Detent Spring
Supersedes: 523899
(246: All)
|
100750 |
£0.81 |
|
 |
Gear Selector/Detent Retaining Ball Bearing
Supersedes: 93309
(246: All) |
101612 |
£0.80 |
|
| |
|
|
|
|
| |
Gearbox Sump |
|
|
|
 |
Engine Sump Drain Plug
Magnetic
1 required
Supersedes: 523977
(246: GT Series 3/E & GTS (up to no. 3540)) |
104280 |
£5.46 |
|
|
Engine Sump Drain Plug
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(246: GT Series 3/E & GTS (from no. 3542)) |
10275011 |
£1.45 |
|
|
Engine Sump Drain Plug
25mm long
(246: GT Series 3/E & GTS (from no. 3542)) |
10275011-25
|
£31.25 |
|
|
Long Uprated Engine Sump Drain Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
|
Engine Sump Drain Plug Washer
Supersedes: 95119, 10279560
(246: GT Series 3/E, GTS)
|
10263460 |
£0.28 |
|
| |
|
|
|
|
|
Gearbox Sump Drain Plug
Magnetic
1 required
Supersedes: 523977
(246: GT Series 3/E, GTS) |
104280 |
£5.46 |
|
| |
|
|
|
|
 |
Transmission Filler/Gearbox Oil Level Control Plug
1 required
Supersedes: 520162, 524146
(206: All); (246: All) |
104282 |
£31.10 |
|
|
Transmission Filler/Gearbox Oil Level Control Plug Washer
Supersedes: 520161
1 required
(206: All); (246: All) |
102645 |
£1.90 |
|
| |
|
|
|
|
|
Drop Gear Housing Filler Plug
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(246: GT Series 3/E, GTS) |
10275011 |
£1.45 |
|
|
Drop Gear Housing Filler Plug
25mm long
(246: GT Series 3/E, GTS) |
10275011-25
|
£31.25 |
|
|
Long Uprated Drop Gear Housing Filler Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
|
Drop Gear Housing Filler Plug Washer
Supersedes: 95119, 10279560
(246: GT Series 3/E, GTS)
|
10263460 |
£0.28 |
|
| |
|
|
|
|
 |
Drop Gears Drain Plug
Magnetic
1 required
Supersedes: 1/4326/540
(246: All) |
14326540 |
£14.40 |
|
|
Drop Gears Drain Plug Washer
Supersedes: 95119, 10279560
(246: All)
|
10263460 |
£0.28 |
|
| |
|
|
|
|
 |
Drop Gears Oil Breather Cap
1 required
(246: GT Series 3/E, GTS) |
13411990 |
£2.67 |
|
| |
|
|
|
|
| |
speedometer cable |
|
|
|
|
Speedometer cable
Left hand drive and right hand drive |
24612005 |
£49.80 |
|
| |
|
|
|
|
| |
Circlips |
|
|
|
 |
Gearbox Dowel Circlip
(246: GT Series 3/E, GTS) |
103839 |
£4.80 |
|
| |
|
|
|
|
| |
Gaskets |
|
|
|
 |
Gearbox Breather Gasket
Supersedes: 147678, 210146
(246: GT Series 3/E, GTS) |
104211 |
£0.51 |
|
| |
|
|
|
|
| |
drives |
|
|
|
 |
Angle Speedo Driver
Supersedes: 534521
(246: GT Series 3/E, GTS) |
101353 |
£430.94 |
|
 |
Angle Speedo Drive Pin
(246: GT Series 3/E, GTS) |
101353-001 |
£74.00 |
|
| |
|
|
|
|
| |
Oil Shield |
|
|
|
 |
Front Oil Shield
1 required
Currently on Manufacturer Back Order
(246: GT Series 3/E, GTS) |
524229 |
£39.95 |
|
 |
Rear Oil Shield
1 required
(246: GT Series 3/E, GTS) |
524230 |
£29.95 |
|
| |
|
|
|
|
| |
tools |
|
|
|
 |
Gearbox Nut Removal Tool
56mm, 260mm Deep |
RNT-56-260 |
£96.00 |
|
 |
Gearbox Nut Removal Tool
56mm, 75mm Deep |
RNT-56-75
|
£84.00 |
|
 |
Drop Gear Nut Removal Tool
44mm |
RNT-44 |
£56.50 |
|
|
Driveshaft/Gearbox Seal Tool, 62mm
Tool for inserting the driveshaft/gearbox seal, #104300 & #125078
(246: GT Series 3/E, GTS) |
ST-03 |
£68.00 |
 |
| |
|
|
|
|
| |
|
|
|
|
