Gearshift shaft rubber bootS |
|
|
|
|
Gearshift Shaft Rubber Boot
(308: All); (208: All) |
106168 |
£12.95 |
|
|
Gearshift Rubber Boot (Body Side)
(308: All); (208: All) (288:GTO) (F40) |
106687 |
£3.46 |
|
| |
|
|
|
|
| |
Lock nuts & circlips |
|
|
|
 |

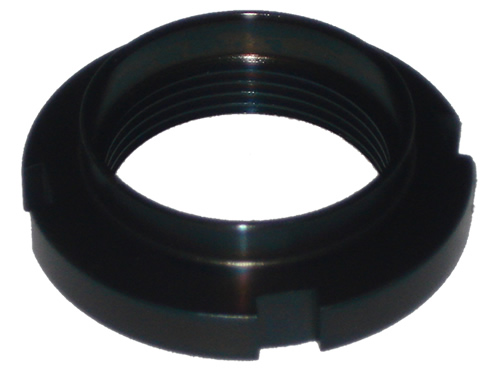

Top Drop Gear (Spigot Shaft) Lock Nut
Use with tool RNT-45
Supersedes: 103091, 524314
(308: All 2V, QV (with clutch shaft #109400)); (208: 1975); (288: GTO) |
106095 |
£16.20 |
|
|
Lower Drop Gear (Transfer Gear) Lock Nut
Use with tool RNT-45
(308: All); (208: 1975, 1982 Turbo) |
105137 |
£16.20 |
|
|
RH Gearbox Lock Nut
Use with tool RNT-56
Supersedes: 104352, 524260
(308: All); (208: All) |
104252 |
£21.50 |
|
 |
LH Gearbox Lock Nut
Use with tool RNT-56
Supersedes: 524259
(308: All); (208: All) |
104253 |
£21.50 |
|
 |
Gearbox Input Shaft Circlip
Supersedes: 11061075
(308: All); (208: 1975, 1989 Turbo)
|
11061076 |
£1.30 |
|
 |
Gearbox Input Shaft Bearing Locating Ring
(308: All); (208: All)
|
105138 |
£6.90 |
|
 |
Gearbox Nut
Supersedes: 125500
(208: All) |
153066 |
£27.00 |
|
 |
Gearbox Dowl Circlip
(208: All); (308: All); (F40: All); (288: All)
|
103839 |
£3.74 |
|
 |
Gearbox Circlip
Supersedes: 22804
(208: All); (308: GTBi/Si, QV); (F40: All)
|
113087 |
£27.00 |
|
 |
Shoulder Washer
(208: Turbo)
|
109342 |
£0.47 |
|
| |
|
|
|
|
| |
drop gear bearings |
|
|
|
 |
Bearing
#103042 #155694 |
30812030 |
£149.50 |
|
 |
Bearing thrust
#105143
2 required |
30812035 |
£9.95 |
|
 |
Bearing
#105142
2 required |
30812040 |
£34.95 |
|
 |
Bearing
#108655 |
30812045 |
£140.00 |
|
 |
 |
Top Idler Gear Bearing
(208: 1989 Turbo)
|
112981 |
£119.00 |
|
| |
|
|
|
|
 |
Bottom Drop Gear Nut
Use with tool RNT-45
(208: 1989 Turbo) |
126853 |
£16.20 |
|
 |
Bottom Drop Gear Outer Bearing-Nut Spacer
(208: 1989 Turbo) |
126859 |
£5.36 |
|
 |
Bottom Drop Gear Outer Bearing Circlip
(208: 1989 Turbo) |
126861 |
£0.46 |
|
| |
|
|
|
|
| |
spigot shaft seals |
|
|
|
|
Input/Spigot Shaft Oil Seal
Viton
Supersedes: 105055, 110314, 134714, 136526, 163987
(308: All); (208: All); (288 GTO); (F40: All)
|
105389 |
£7.95 |
|
 |
Gear Linkage Seal
#115372 |
30812052 |
£8.50 |
|
 |
| |
|
|
|
Gear Linkage 'O' Ring
1 required
(308: 1976 GT4 (Up to No. 10114 (LHD) - 10100 (RHD) - 10358 (U.S. version));
(208: 1975 GT4) |
105556 |
£0.69 |
|
|
Gear Linkage 'O' Ring, inner
1 required
(308: 1976 GT4 (Up to No. 10114 (LHD) - 10100 (RHD) - 10358 (U.S. version));
(208: 1975 GT4) |
105557 |
£0.69 |
|
 |
Gear Linkage 'O' Ring
2 required
Supersedes: 101026, OR 4081
(308: 1976 GT4 (Up to No. 10114 (LHD) - 10100 (RHD) - 10358 (U.S. version));
(208: 1975 GT4) |
105558 |
£0.63 |
|
 |
| |
|
|
|
Gear Linkage 'O' Ring
1 required
(308: 1976 GT4 (From No. 11324 (LHD) - 11300 (RHD) - 10360 (U.S. version)) |
105556 |
£0.69 |
|
|
Gear Linkage 'O' Ring, inner
1 required
(308: 1976 GT4 (From No. 11324 (LHD) - 11300 (RHD) - 10360 (U.S. version)) |
105557 |
£0.69 |
|
|
Gear Linkage 'O' Ring
2 required
Supersedes: 101026, OR 4081
(308: 1976 GT4 (From No. 11324 (LHD) - 11300 (RHD) - 10360 (U.S. version)) |
105558 |
£0.63 |
|
|
| |
|
|
|
Gear Linkage 'O' Ring
2 required
Supersedes: 101026, OR 4081
(308: 1979 GT4, GTB/S) |
105558 |
£0.63 |
|
| |
|
|
|
|
|
Gear Linkage Rod Spacer
(308: GT4, GTB, GTBi/Si, QV); (208: Turbo)
|
108247 |
£10.17 |
|
| |
|
|
|
|
| |
Bell housing seals |
|
|
|
|
Bell Housing 'O' Ring Set
Set of the 3 bell housing 'O' rings |
30812055 |
£3.25 |
|
| |
|
|
|
|
| |
gearbox bearings |
|
|
|
 |
Bearing
#104255
4 required |
30812060 |
£19.95 |
|
 |

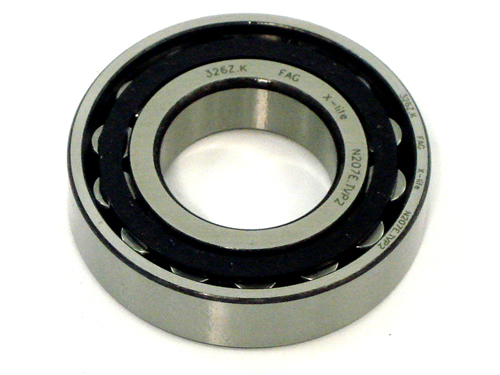

Bearing
#104257 (108656)
2 required |
30812065 |
£86.98 |
|
|
Bearing
#103042 #155694 |
30812070 |
£149.50 |
|
 |

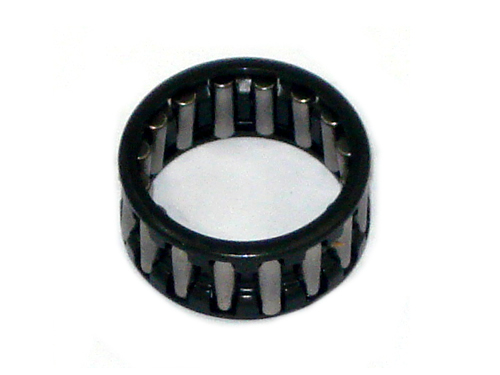

Bearing
#104256
2 required |
30812075 |
£26.90 |
|
 |
Bearing
#104258 |
30812080 |
£79.25 |
|
 |
Bearing
4 required
(308: GT4, GTB, GTBi/Si, QV); (208: GT4, Turbo) |
104254 |
£9.14 |
|
| |
Bearing
#109012
2 required
|
30812090 |
£12.20 |
|
 |

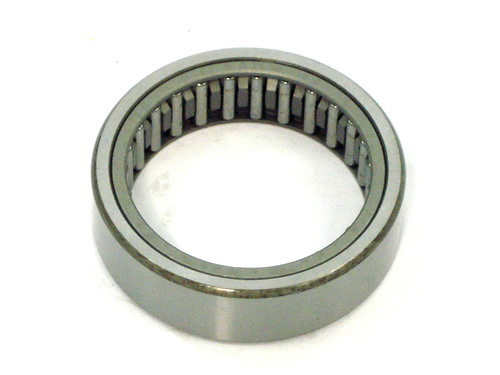

Bearing
#105539 |
30812095 |
£54.95 |
|
 |
Bearing
#109002
2 required |
30812100 |
£10.60 |
|
| |
|
|
|
|
| |
Synchromesh |
|
|
|
|
Synchro Ring 308
1st, 2nd & 3rd Gear
#106040 |
30812110 |
£192.18 |
|
 |
Synchro Ring 308
4th & 5th gear
Smooth interior
#106048 |
30812112 |
£378.00 |
|
 |
Synchro Ring 308
4th & 5th gear
Ribbed interior
#150628 |
30812115 |
£170.65 |
|
 |
Synchro Sleeve 4th, 5th Gear
(308: All); (208: 1975 GT4, 1982 Turbo, 1989 Turbo (Until gearbox number 519)) |
106051 |
£338.15 |
|
 |
Synchro Sleeve
(308: All); (208: All); (288: GTO) |
184547 |
£262.49
|
|
 |
Synchro Spring
(308: All); (208: All); (288: All); (F40: All) |
106043 |
£2.80 |
|
| |
|
|
|
|
| |
bushes |
|
|
|
|
Gearshift Linkage Silent Block Bush
Supersedes: 139555
(308: All); (208: All)
|
106814 |
£12.95 |
|
| |
|
|
|
|
| |
tools |
|
|
|
 |
Gearbox Nut Removal Tool
56mm
|
RNT-56-260 |
£85.50 |
|
 |
Drop Gear Nut Removal Tool
45mm
|
RNT-45 |
£49.50 |
|
|
Driveshaft/Gearbox Seal Tool, 62mm
Tool for inserting the driveshaft/gearbox seal, #104300 & #125078
(308: All); (208: All) |
ST-03 |
£55.00 |
|
| |
|
|
|
|
| |
Reverse light switch |
|
|
|
 |
Reverse Light Switch
Supersedes: 104320, 524509
(308: GT4, GTB, GTBi/Si, QV); (208: All); (288: All); (F40: All) |
115980 |
£35.70 |
|
| |
|
|
|
|
| |
springs |
|
|
|
 |
Gear Lever Reverse Spring
(208: GT4); (308: 1976 GT4, 1979 GT4, 1976 GTB, 1980 GTB) |
108823 |
£1.20 |
|
| |
|
|
|
|
| |
gear selector/detent |
|
|
|
 |
Gear Selector/Detent Spring
Supersedes: 523899
(308: GT4, GTB/S, QV); (208: 1975 GT4, 1989 Turbo)
|
100750 |
£0.75 |
|
| |
|
|
|
|
 |
Gear Selector/Detent Retaining Ball Bearing
Supersedes: 93309
(308: All); (208: All); (288: GTO); (F40: All) |
101612 |
£0.80 |
|
| |
|
|
|
|
 |
Gear Selector/Detent Bush
Supersedes: 523975
(308: GT4, GTB/S); (208: 1975 GT4)
|
104277 |
£36.20 |
|
 |
Gear Selector/Detent Bush
Supersedes: 523975
(308: GTBi/Si, QV); (208: 1982 & 1989 Turbo); (F40: All)
|
115376 |
£36.20 |
|
| |
|
|
|
|
 |
Selector Shaft Bolt
Supersedes: 95550
(308: All); (208: All) |
104279 |
£15.10 |
|
| |
|
|
|
|
| |
drain/filler plugs |
|
|
|
 |
Drop Gear Housing Filler Plug
Supersedes: 94858, 10275001, 10275040, 10305140, 10305171
(308: All); (208: All) |
10275011 |
£1.40 |
|
|
Gearbox Filler Plug
Supersedes: 94858, 10275001, 10275040, 10305140, 10305171
(308: All); (208: All); (F40: All) |
10275011 |
£1.40 |
|
| |
|
|
|
|
| |
drives |
|
|
|
 |
Angle Speedo Driver
Early Mechanical Drive Speedo Only
Supersedes: 534521
(308: 1976 GT4) |
101353 |
£216.00 |
|
| |
|
|
|
|
| |
intermediate gear |
|
|
|
 |

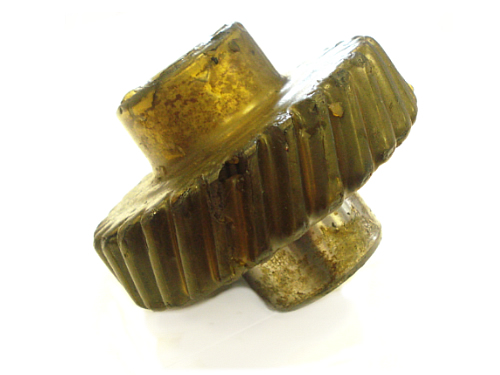

Intermediate Gear
(308: GT4, GTB, GTBi/Si); (208: GT4) |
105543 |
£323.00 |
|
| |
|
|
|
|
| |
gear lever |
|
|
|
 |
Gear Lever Bush
Supersedes: 104316, 108214
(308: All); (288: GTO); (F40: All)
|
127446 |
£14.40 |
|
| |
|
|
|
|
| |
|
|
|
|
