All our inlet and exhaust valves are manufactured from top grade Austinetic 214N Stainless Steel.
All exhaust valves are double forged and where necessary, Stellite tipped with Stellite 12H and seats with Stellite 6H.
Finally, all valves are Pulse Plasma Nirtrided. |
|
| |
|
|
|
|
| |
Valves & Guides |
|
|
|
|
355 Inlet Valve |
35515005 |
£29.50 |
|
|
355 Exhaust Valve |
35515010 |
£28.75 |
|
 |
Exhaust Valve Seat
(355: 2.7, 5.2 Motronic)
|
140702 |
£9.60 |
|
|

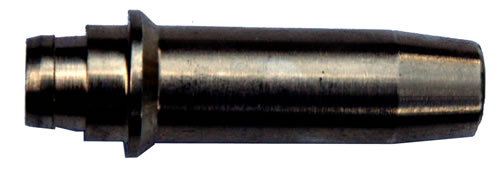

Inlet Valve Guide
Supersedes: 149900, 172328
(355: 2.7, 5.2 Motronic) |
176437 |
£14.95 |
|
|
Exhaust Valve Guide
Supersedes: 148190, 172329
(355: 2.7, 5.2 Motronic) |
176438 |
£14.95 |
|
| |
|
|
|
|
| |
Valve stem seal |
|
|
|
 |
Valve Stem Oil Seal
(355: 2.7, 5.2 Motronic) |
148153 |
£1.26 |
|
 |
Valve Seal Tool for 8mm diameter valve guide
Designed to overcome the problem of correctly installing valve stem seals. The seal is simply inserted onto the tool (see enlarged picture) and the tool is then inserted into the valve guide. The seal is now perfectly square to the location diameter and with a small amount of pressure on the end of the tool, the seal is installed effortlessly, without damage and right first time. |
VST-01 |
£45.00 |
|
| |
|
|
|
|
| |
valve shims |
|
|
|
 |
Valve Shim Removal Tool
Set:
- Hardened & ground bucket tool with serrated finger grips
- Blacked Chrome Vanadium Steel lever tool
Supersedes: 95979560
(355: All) |
AS9560 |
£76.00 |
|
| |
|
|
|
|
| |
Cam belt |
|
|
|
 |
355 Cam Tensioner Kit
Includes:
- 2 x 158157
- 2 x 154378
(355: 2.7 Motronic, 5.2 Motronic)
|
35515045 |
£179.95 |
|
 |

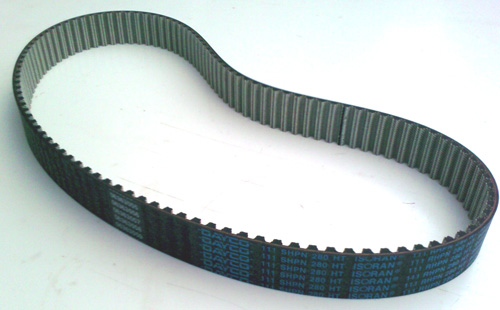

Timing/Cam Belt
Supersedes: 181610, 184986
(355: 2.7 Motronic, 5.2 Motronic)
|
154378 |
£24.92 |
|
 |

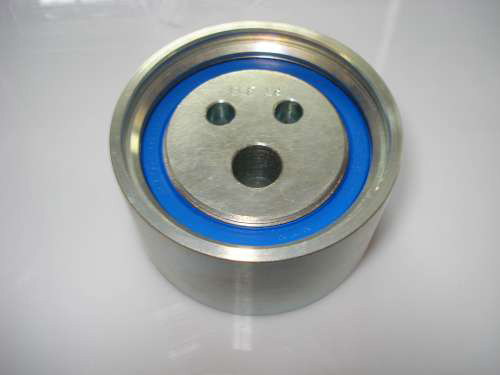

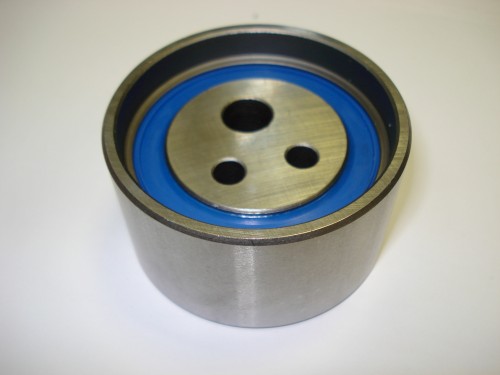

355 Cam Tensioner Bearing
Standard Single Roller
Supersedes: 167464
(355: 2.7 Motronic, 5.2 Motronic)
|
158157 |
£70.00 |
|
 |
355 Cam Tensioner Bearing
Up-rated with dual angular contact bearing |
PT355 |
£120.00 |
|
| |
|
|
|
|
| |
Gasket Sets |
|
|
|
 |

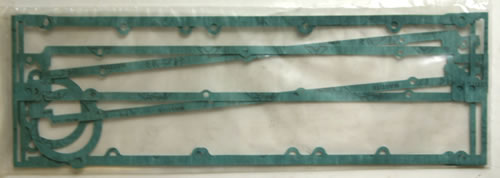

Cam Cover Gasket Set
Without seals
Including Spark Plug 'O' Rings (x8)
(355: 2.7, 5.2 Motronic) |
35515035 |
£32.95 |
|
 |
Cam Cover Gasket Set
With seals
(355: 2.7, 5.2 Motronic) |
35515036 |
£73.99 |
|
| |
|
|
|
|
| |
Gaskets |
|
|
|
 |
LH Top Cover Gasket
(355: 2.7, 5.2 Motronic) |
163620 |
£3.45 |
|
 |
RH Top Cover Gasket
(355: 2.7, 5.2 Motronic) |
163621 |
£3.45 |
|
 |
End Plate Gasket
2 required
(355: 2.7, 5.2 Motronic) |
140787 |
£5.25 |
|
 |
RH Cam Cover Gasket
Supersedes: 149467
(355: 2.7, 5.2 Motronic) |
176156 |
£8.90 |
|
 |
LH Cam Cover Gasket
Supersedes: 149468
(355: 2.7, 5.2 Motronic) |
176157 |
£8.90 |
|
| |
|
|
|
|
| |
O Rings |
|
|
|
 |
Spark Plug ‘O’ Ring
8 required
(355: 2.7, 5.2 Motronic) |
149554 |
£0.49 |
|
 |
Cam Shaft ‘O’ Ring
2 required
(355: 2.7, 5.2 Motronic) |
158349 |
£1.16 |
|
 |
Rear Small Cover ‘O’ Ring
2 required
(355: 2.7, 5.2 Motronic) |
117275 |
£3.80 |
|
| |
|
|
|
|
 |
Oil Exhaust Ducting ‘O’ Ring
(355: All) |
147278 |
£0.31 |
|
| |
|
|
|
|
| |
Oil seals |
|
|
|
|
Camshaft Oil Seal
Viton
Supersedes: 105055, 110314, 134714, 136526, 163987
(355: 2.7, 5.2 Motronic)
|
105389 |
£7.95 |
|
| |
|
|
|
|
| |
nuts |
|
|
|
 |
Cylinder Head Nut
(355: All) |
148093 |
£3.80 |
|
|
CP Dome Nuts for Cam Covers
Pack of 10
As orginal chrome-plate on brass
|
24615170 |
£9.95 |
|
| |
|
|
|
|
| |
camshafts |
|
|
|
|
Standard Profile Camshaft Set
|
35515145 |
£2358.40 |
|
| |
|
|
|
|
| |
|
|
|
|
