Air filter |
|
|
|
| |
Please note: there has been a great deal of confusion over the correct air filters for 330 and 365 GT/GTC models. We have spent a lot of time researching this to try to identify the correct filter for your vehicle and we believe the following to be correct:
- 275 GTB/S and 330 GT should use filter 95180052/A.
- 330 GTC and 365 GT should use filter 95180054.
There is a possibility that some 275 GTB/S and 330 GT models use a filter that is 160 x 115 x 60mm (95180052) and we advise customers to measure their filter to ensure they order the correct part. We would also appreciate your feedback via email to ensure that the above information is correct and to help us to continue to work towards providing the most accurate service for your Ferrari parts. |
|
| |
|
|
|
|
 |
Air Filter
160 x 115 x 60mm
3 required
(275: GTB/S 2-Cam) |
95180052
 |
£23.40 |
|
 |
Air Filter
175 x 125 x 55mm
3 required
Supersedes: 95180052/A
(275: GTB/S 2-Cam) |
95180052/A |
£14.57 |
|
 |
Air Filter
190 x 158 x 68mm
3 required
(275: GTB/S 2 cam) |
95180054/A |
£48.50 |
|
 |
 |
Air Filter
(275: GTB4)
|
9181944 |
£79.00 |
|
|
Air Box Knurled Nut, Each
3 Required per car
(275: All) |
104550
 |
£5.20 |
|
| |
|
|
|
|
| |
oil filter |
|
|
|
|
Oil Filter
WIX Filters
2 required
Sold seperately
(275 GTB/GTS 2 cam); (275: GTB4) |
95240001 |
£22.82 |
|
| |
|
|
|
|
| |
fuel pump and filter |
|
|
|
|
Autoflux Style Fuel Pump
(275: All) |
34263 |
£1139.44 |
|
|
Fispa Style Fuel Pump
(275: All) |
34342/A |
£1091.25 |
|
|
Fuel Pump Rebuild Kit
Fispa SUP150
(275: GTB2, GTS) |
95180130 |
£139.58 |
|
|
Fuel Pump Cam Gear and Shaft
(275: All) |
34331
|
£385.00 |
|
|
Fuel Pump Pin
(275: All) |
34389
|
£132.00 |
|
| |
|
|
|
|
| |
fuel regulator |
|
|
|
|
Fuel Regulator
(275: GTB/S)
|
FIA09065 |
£348.90 |
|
 |
Fuel Regulator Glass Bowl Gasket
(275: GTB4) |
95340001/GBG |
£5.68 |
|
| |
|
|
|
|
| |
fuel sender |
|
|
|
 |
Fuel Tank Sender Unit |
FER09025 |
£74.95 |
|
|
4mm Spring Washer
(275: GTB/S) |
11195370 |
£0.25 |
|
| |
|
|
|
|
| |
Petrol flap body protector |
|
|
|
 |
Rubber Body Protector
Original Style |
62943200 |
£13.70 |
|
| |
|
|
|
|
| |
Fuel Tank |
|
|
|
|
Fuel Tank to Balance Pipe Connecting Hose
2 required
Supersedes: 95003, 114277
(275: GTB/S (LHD)) |
101468/A |
£25.87 |
|
 |
Fuel Pick Up Union Washer
2 required per union
(275: GTB/S) |
10263160 |
£0.25 |
|
| |
|
|
|
|
| |
filler cap |
|
|
|
|
Original Filler Cap
|
113401/OE |
£164.34 |
|
| |
|
|
|
|
 |
Oil / Fuel Filler Cap Seal
|
FER09002 |
£9.95 |
|
| |
|
|
|
|
|
Petrol Filler Cap Screw Thread
Standard |
24609145 |
£34.95 |
|
| |
|
|
|
|
| |
Hose |
|
|
|
 |
20mm Oil Breather Hose
Per Meter
|
FER09065 |
£8.78 |
|
| |
|
|
|
|
| |
carb rebuild kit |
|
|
|
|
Carb Rebuild Kit - Daytona
Early for 3 Bolt Carbs
|
24609034 |
£50.82 |
|
|
Carb Rebuild Kit - 250
one kit per carb
|
V1209010 |
£58.73 |
|
|

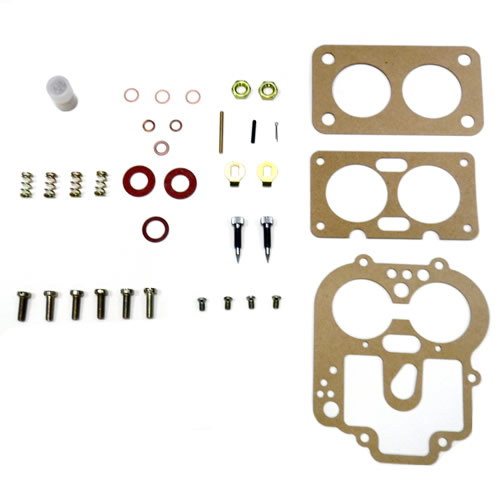

Carb Rebuild Kit - 275 GTB
For 40DCZ/6 Carb, one kit per carb
(275: GTB)
|
V1209015 |
£101.21 |
|
|
Carb Rebuild Kit
For 38/40/42/45 DCOE Carb, one kit per carb
|
V1209020 |
£39.95 |
|
| |
|
|
|
|
| |
Carb stud kit |
|
|
|
|
Carburettor Top Stud Repair Kit (Fits all 40 DCNF carbs)
Carefully designed to solve the problem of loose and stripped studs between the carburettor and air cleaner. Includes drill and tap to enlarge thread size to M6.00. |
FIA09055 |
£79.95 |
|
| |
|
|
|
|
| |
Carburettor spares |
|
|
|
 |
Carburettor Top Plate
(For Three Bolt Mounting Carbs)
|
4153760 |
£11.60 |
|
|
Carburetor to Inlet Manifold Spacer
Aftermarket
(275: GTB4) |
19909/A |
£44.88 |
 |
 |
Carburettor Diaphragm
(275: GTB4)
|
47407.014 |
£26.97 |
|
 |

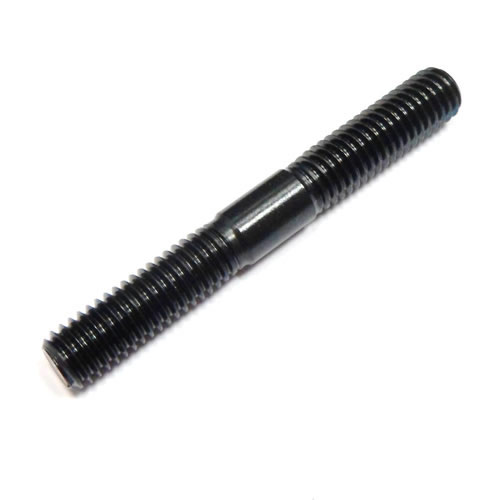

Carburettor Linkage Tie Rod
40mm
(275: GTB/S)
|
94960
|
£19.80 |
|
 |
Carburettor Banjo Bolt
M12 x 1.5p Thread
(275: GTB4)
|
12715.021 |
£15.80 |
|
 |
Carb Cam for 7mm Shafts, Weber 40 DCN
(275: GTB4)
|
14850.024-07MM |
£53.90 |
|
 |
Carburettor Fibre Washer
Supersedes: 95180568
(275: GTB/S)
|
41530.004 |
£2.50 |
|
 |
Carburettor Fibre Washer
Supersedes: 10281285, 95180581
(275: GTB/S, GTB4)
|
41530.001
` |
£1.44 |
|
| |
|
|
|
|
| |
clamps |
|
|
|
 |
Hose Clamp
10 to 16mm
Supersedes: 12179690
|
13000190 |
£0.46 |
|
 |
Hose Clamp
25 to 40mm
|
13000590 |
£0.62 |
|
 |
'P' Clip Bracket 14mm
|
10441490 |
£0.46 |
|
| |
|
|
|
|
| |
Gaskets |
|
|
|
|
Carburettor-Air Filter Base Gasket
(275: GTB/GTS 2 Cam) |
18248 |
£2.24 |
|
|
Carburettor Base Spacer
Supersedes: 18835
(275: GTB/GTS 2 Cam) |
19166
|
£48.00 |
|
|
Carburettor Top-Air Box Gasket
(275: GTB4) |
19557 |
£8.59 |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
