Our silent bloc bush range has the following specifications:
- High grade SMR based natural rubber
- 68 and 85 shore hardness
- Tearing strength of 24MPa
- Rubber is bonded to inner and outer metal sections (it is not assembled unbounded), which means that inner and outer sections stay in position and do not migrate, and the metal sleeve does not rotate in the rubber.
- Zinc-plated or black-passivated to resist corrosion
- Cured at temperature and high pressure |
|
| |
|
|
|
|
| |
Front SUSPENSION BUSHES |
|
|
|
 |
Front Suspension Bush Set
High Quality: See below for more information.
(412: with lower front wishbone #125685 - until 31st March 1986) |
V1208015 |
£171.61 |
|
 |
| 4 x |
 |
Lower Front Inner Wishbone Bush
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
2 required per wishbone (4 req. per car)
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(412: with lower front wishbone #125685 - until 31st March 1986) |
|
103170 |
£24.43 |
|
| 8 x |
 |
Front Torsion Bar Rubber
8 required per car
Supersedes: 126097, 64430
(412: All) |
|
100984 |
£6.77 |
|
| 2 x |
 |
Front Torsion Bar 'O' Rubber
2 required per car
Supersedes: 104862, 640335, 641101
(412: All) |
|
108744 |
£12.90 |
|
 |
 |
Front Suspension Bush Set
High Quality: See below for more information.
(412: with lower front wishbone #129584 - from 1st April 1986) |
V1208016 |
£190.41 |
|
|
| 4 x |
 |
Lower Front Inner Wishbone Bush
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
2 required per wishbone (4 req. per car)
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(412: with lower front wishbone #129584 - from 1st April 1986) |
|
134883 |
£29.80 |
|
| 8 x |
|
Front Torsion Bar Rubber
8 required per car
Supersedes: 126097, 64430
(412: All) |
|
100984 |
£6.77 |
|
| 2 x |
|
Front Torsion Bar 'O' Rubber
2 required per car
Supersedes: 104862, 640335, 641101
(412: All) |
|
108744 |
£12.90 |
|
|
|

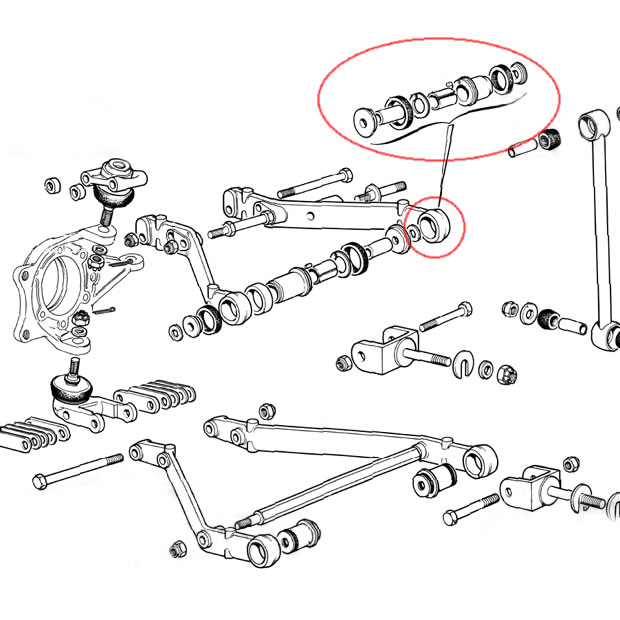

Complete Front Upper Front Inner Wishbone Bush Assy., each
Uprated: Stainless steel
1 required per wishbone (2 req. per car)
(412: All)Each complete bush includes 1 of each of:
109901, 109904 (105445, 107434), 105342 (641216), 101009 (600771),
101010 (600786), 100796 (94943), 105446 (641220), 105343 (641217),
105443 (641222). |
V1208080 |
£44.95 |
|
| |
|
|
|
|
|

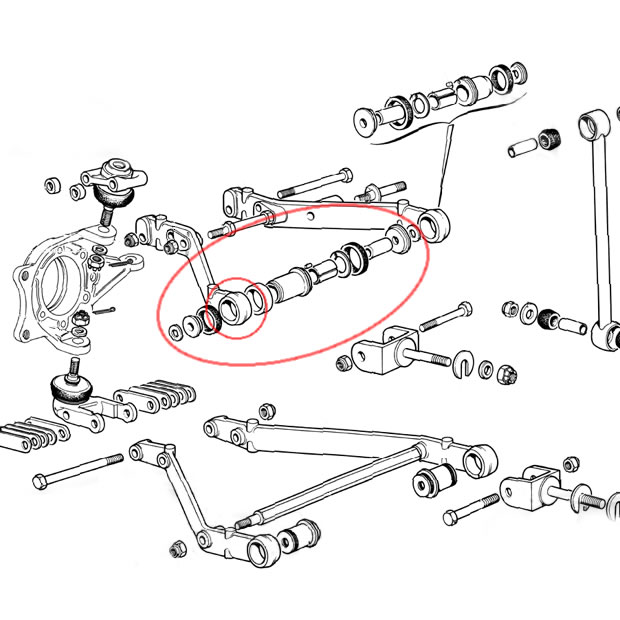

Complete Rear Upper Front Inner Wishbone Bush Assy., each
Uprated: Stainless steel
1 required per wishbone (2 req. per car)
(412: All)Each complete bush includes 1 of each of:
109901, 109903 (105441, 107433, 641215), 105342 (641216), 101009 (600771),
101010 (600786), 100796 (94943), 105442 (641214), 105343 (641217),
105443 (641222). |
V1208082 |
£62.95 |
|
| |
|
|
|
|
 |
Large Front Inner Wishbone Bush Rubber Seal
Supersedes: 641216
(412: All) |
105342 |
£4.25 |
|
 |
Small Front Inner Wishbone Bush Rubber Seal
Supersedes: 641217
(412: All) |
105343 |
£3.95 |
|
|
|
High Quality Front Torsion Bar 'O' Rubber Bracket
Uprated: Stainless steel
2 required per car
Supersedes: 640008
(412: All) |
101050 |
£8.02 |
|
 |
Front Suspension Fork
(412: All) |
116690 |
£250.54 |
|
|
|
|
|
|
| |
Rear SUSPENSION BUSHES |
|
|
|
 |

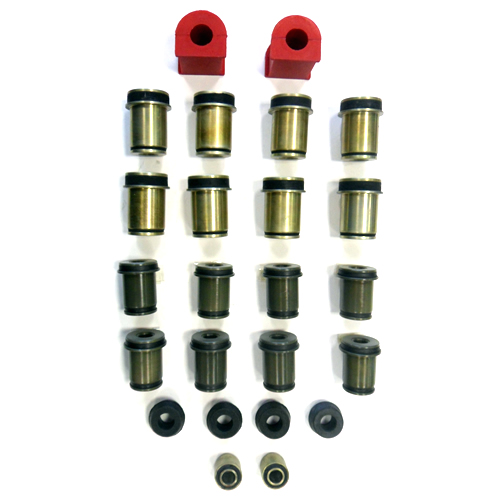

Rear Suspension Bush Set
High Quality: See below for more information.
(412: All) |
V1208040 |
£494.41 |
|
|
| 8 x |
|
Upper & Lower Inner Rear Wishbone Bush
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
4 required per wishbone (8 req. per car)
Supersedes: 101091, 129583, 601853
(412: All) |
|
134883 |
£29.80 |
|
| 8 x |
 |
Upper & Lower Outer Rear Wishbone Bush
Hard 85-shore hardness rubber
Uprated: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
4 required per wishbone (8 req. per car)
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(412: All) |
|
103170H |
£23.95 |
|
| 2 x |
 |
Rear Drop Link Silent Bloc Bush
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
1 required per drop link (2 req. per car)
Supersedes: 60220, RIV 88.109.541
(412: All) |
|
100773 |
£17.79 |
|
| 4 x |
|
Rear Torsion Bar Rubber
4 required per car
Supersedes: 126097, 64430
(412: All) |
|
100984 |
£6.77 |
|
| 2 x |
 |
Rear Torsion Bar ‘D’ Rubber
2 required per car
Supersedes: 104862, 640335, 641101
(412: All) |
|
108745 |
£17.26 |
|
|
|
Upper & Lower Outer Rear Wishbone Bush
We use a firmer shore-hardness for the outer bushes in our Bush Sets, but the standard bush is listed here if you would prefer not to use the hard bushes.
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
4 required per wishbone (8 req. per car)
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(412: All) |
103170 |
£24.43 |
|
| |
|
|
|
|
|
Teflon Upper & Lower Outer Rear Wishbone Bush, Flamblock Style with Teflon Washers
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
Supersedes: 104398, 111616, 111617, 154536, 157701, 161571, 163038, 601134, 601157, 641271
(412: All) |
103170F |
£39.95 |
|
| |
|
|
|
|
| |
Powerflex teflon suspension bushes (trackday / fast road use) |
|
|
|
|
Lower Front Inner Wishbone Bush
Uprated: Polyurethane
Powerflex
(412: All) |
PF17-200 |
£32.95 |
|
|
Lower Rear Outer Wishbone Bush
Uprated: Polyurethane
Powerflex
(412: All) |
PF17-200 |
£32.95 |
|
|
Upper Rear Outer Wishbone Bush
Uprated: Polyurethane
Powerflex
(412: All) |
PF17-200 |
£32.95 |
|
|
Lower Rear Inner Wishbone Bush
Uprated: Polyurethane
Powerflex
(412: All) |
PF17-110 |
£21.95 |
|
|
Upper Rear Inner Wishbone Bush
Uprated: Polyurethane
Powerflex
(412: All) |
PF17-110 |
£21.95 |
|
| |
|
|
|
|
| |
ball joints |
|
|
|
|
Upper Ball Joint
(412: All) |
116280/A |
£79.00 |
|
|
Lower Ball Joint
Supersedes: 114462, 101442, 154536, 640427, 641487
(412: All)
|
133944 |
£78.08 |
|
|
Lower Ball Joint Rubber Dust Cover Kit
Supersedes: 116280/K
(412: All)
|
133944/K |
£16.15 |
|
|
Ball Joint Rubber |
24608155 |
£11.60 |
|
|
Ball Joint Washer
1 req. per ball joint (4 req. per car)
Supersedes: 12R1
(412: All) |
101445 |
£0.69 |
|
|
Ball Joint Nut
1 req. per ball joint (4 req. per car)
Supersedes: Ehrenrejch 035.0145.044.506
(412: All) |
149807 |
£0.61 |
|
| |
|
|
|
|
| |
Shims |
|
|
|
 |
Shim
|
|
|
|
| 1.0mm |
101039 |
£1.35 |
|
| 1.5mm |
107338 |
£1.35 |
|
| 2.0mm |
107339 |
£1.35 |
|
| 2.5mm |
107340 |
£1.35 |
|
| 3.0mm |
107341 |
£1.35 |
|
| |
|
|
|
|
|
Lower Ball Joint Shim |
|
|
|
| 1.0mm |
164484 |
£2.20 |
|
| 1.2mm |
115073 |
£1.75 |
|
| 1.5mm |
101022 |
£1.75 |
|
| 2.0mm |
164485 |
£1.75 |
|
| |
|
|
|
|
 |
Front Suspension Wishbone Shim
Aftermarket
Supersedes 641187
(412: All) |
101004/A
|
£48.83 |
|
| |
|
|
|
|
| |
Shock absorber bushes |
|
|
|
 |
Upper Front Shock Absorber Bush
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
(412: All) |
125926 |
£34.95 |
|
 |
Lower Front Shock Absorber Bush
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
(412: All) |
105634 |
£39.92 |
|
|
 |
Rear Shock Absorber Bush
High Quality: Superformance bushes use high grade rubber designed for maximum absorption that is bonded (not pressed) to the non rotating parts. The centre pins are ground on a centreless grinder to obtain a precise fit.
Supersedes: 601352
(412: All) |
100810 |
£14.95 |
|
| |
|
|
|
|
| |
springs |
|
|
|
 |
Rear Shock Absorber Spring
(412: All) |
118233 |
£99.50 |
|
|
Rear Road Spring
(412: All)
|
601712 |
£99.50 |
|
| |
|
|
|
|
| |
Front wheel bearing and hub |
|
|
|
|
Front Wheel Bearing
(412: All) |
112799 |
£363.21 |
|
|
Front Wheel Bearing Stay Bolt Washer
(412: All)
|
124464 |
£15.88 |
|
|
Front Wheel Bearing Outer Shield
(412: All)
|
112823 |
£39.83 |
|
 |
Front Hub Shaft Pin
(412: All) |
13909870 |
£0.46 |
|
| |
|
|
|
|
| |
Rear wheel bearings |
|
|
|
|
Inner Rear Wheel Bearing
Supersedes: 125934, 145805, RIV AL 35
(412: All)
|
101220 |
£34.20 |
|
|
Outer Rear Wheel Bearing
Supersedes: 125935
(412: All) |
144807 |
£86.28 |
|
|
Rear Wheel Oil Seal
(412: All)
|
115968 |
£19.43 |
|
 |
Rear Hub Oil Seal
(412: All) |
110579 |
£7.04 |
|
| |
|
|
|
|
| |
Stub Axle |
|
|
|
 |
Front Stub Axle Washer
(412: All) |
118522 |
£8.61 |
|
| |
|
|
|
|
| |
nuts |
|
|
|
 |
Front Hub Shaft Lock Nut
2 required
(412: All) |
124642 |
£12.95 |
|
| |
|
|
|
|
|
Inner Rear Hub Shaft Lock Nut
RH Thread
44mm -
Use with tool RNT-44
2 required
Supersedes: 522670, 700648
(412: All) |
102289
|
£28.45 |
|
|
Front Wishbone Fork Nut
(412: All) |
101040
|
£13.49 |
|
| |
|
|
|
|
| |
Shock Absorber Rubbers |
|
|
|
|
Rear Suspension Spring Rubber Set
Per shock absorber
Includes 1 x top & 1 x bottom rubber
Supersedes: 100776, 117724, 118747, 600925
(412: All)
|
30808220
 |
£29.95 |
|
| |
|
|
|
|
| |
Mounts |
|
|
|
|
Rear Shock Absorber Top Mount
(412: All) |
117720 |
£116.78 |
|
|
Top Mount Washer
(412: All) |
114815 |
£1.80 |
|
| |
|
|
|
|
| |
oil reservoir |
|
|
|
|

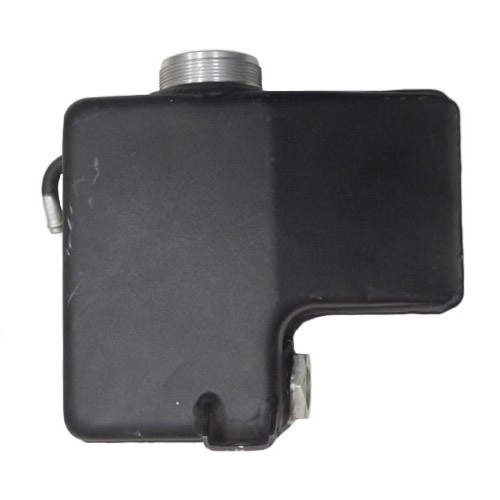

Suspension Fluid Reservoir
(412: All) |
126468 |
£166.23 |
|
| |
|
|
|
|
| |
Anti Roll BAr |
|
|
|
|
Anti Roll Bar Link
Aftermarket
Supersedes: 64543
(412: All)
|
104420/A |
£686.70 |
|
|
Anti Roll Bar Washer
(412: All) |
105334 |
£6.95 |
|
| |
|
|
|
|
| |
MIsc Nuts, Bolts & Washers |
|
|
|
 |
M14 Spring Washer
|
M14WASH |
£0.27 |
|
 |
Washer
|
10519424 |
£0.02 |
|
|
Washer
D 8.15 - 17 x 2 mm
Supersedes: 10519601,10519620, 10519621, 93798
|
10519624 |
£0.13 |
|
|
Shim Washer
Supersedes: 95320
(412: All)
|
100794 |
£0.69 |
|
| |
|
|
|
|
| |
High Quality Yellow Nyloc nuts |
|
|
|
 |
7mm Spanner Size Nut
M4 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M4NUT |
£0.23 |
|
 |
10mm Spanner Size Nut, Standard
M6 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M6NUTSTD |
£0.24 |
|
 |
10mm Spanner Size Nut, Tall
M6 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M6NUTTALL |
£0.28 |
|
 |
13mm Spanner Size Nut, Standard
M8 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M8NUTSTD |
£0.24 |
|
 |
13mm Spanner Size Nut, Tall
M8 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M8NUTTALL |
£0.29 |
|
 |
17mm Spanner Size Nut
M10 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M10NUT |
£0.34 |
|
 |
19mm Spanner Size Nut
M12 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M12NUT |
£0.38 |
|
 |
22mm Spanner Size Nut
M14 x 1.5mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M14NUT |
£0.42 |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
