All our inlet and exhaust valves are manufactured from top grade Austinetic 214N Stainless Steel.
All exhaust valves are Double-forged and, where necessary, Stellite-tipped with Stellite 12H and seats with Stellite 6H.
Finally, all valves are Pulse Plasma Nirtrided. |
|
|
Valves |
|
|
|
|
Inlet Valve
Lead-free engine builds
(512: BB, BBi) |
102662 |
£44.23 |
|
|
Exhaust Valve
Lead-free engine builds
Supersedes: 102856, 4198464, 9162613
(512: BB, BBi) |
106553 |
£54.63 |
|
|
|
|
|
|
|
Valve seals |
|
|
|
|
Valve Stem Oil Seal
Rubber
Supersedes: 4160870, 100243, 9160898, 119766
(512: BB, BBi)
|
4174355 |
£5.78 |
|
|
Valve Stem Oil Seal
Teflon
(512: BB, BBi)
|
4174355T |
£5.98 |
|
 |
Valve Seal Tool for 8mm diameter valve guide
Designed to overcome the problem of correctly installing valve stem seals. The seal is simply inserted onto the tool (see enlarged picture) and the tool is then inserted into the valve guide. The seal is now perfectly square to the location diameter and with a small amount of pressure on the end of the tool, the seal is installed effortlessly, without damage and right first time.
FOR RUBBER SEALS ONLY
|
VST-01-A
 |
£55.00 |
|
|
Valve Seal Tool for 8mm diameter valve guide
Designed to overcome the problem of correctly installing valve stem seals. The seal is simply inserted onto the tool (see enlarged picture) and the tool is then inserted into the valve guide. The seal is now perfectly square to the location diameter and with a small amount of pressure on the end of the tool, the seal is installed effortlessly, without damage and right first time.
FOR WHITE PTFE/TEFLON SEALS ONLY
(512: BB, BBi)
|
VST-01 |
£55.00 |
|
|
|
|
|
|
|
valve springs |
|
|
|
|
Performance Valve Springs, complete set
High quality steel
Includes:
- 24 x Uprated Inner Springs (#100239 supersedes 4146798, 9160342, 9161346)
- 24 x Uprated Outer Springs (#100240 supersedes 4146799, 9160343, 9161347)
(512: BB, BBi) |
V1215125 |
£322.42 |
|
|
|
|
|
|
|
valve spring retainerS |
|
|
|
|
Valve Spring Retainer Cap
Supersedes: 4178524, 9162614
(512: BB, BBi)
|
106180/A |
£18.95 |
|
 |
Valve Spring Seat
Supersedes: 106181, 9162615
(512: BB, BBi)
|
4178525 |
£16.40 |
|
| |
|
|
|
|
|
valve shims |
|
|
|
|
Valve Shim Removal Tool
Set:
- Hardened & ground bucket tool with serrated finger grips
- Blacked Chrome Vanadium Steel lever tool
Supersedes: 95979560
|
AS9560 |
£92.00 |
|
 |
Flat Type Valve Spacer, 33mm Diameter
|
|
|
|
| 2.50mm |
108672-2.50 |
£5.95 |
 |
| 2.55mm |
108672-2.55 |
£5.95 |
|
| 2.60mm |
108672-2.60 |
£5.95 |
|
| 2.65mm |
108672-2.65 |
£5.95 |
|
| 2.70mm |
108672-2.70 |
£5.95 |
|
| 2.75mm |
108672-2.75 |
£5.95 |
|
| 2.80mm |
108672-2.80 |
£5.95 |
|
| 2.85mm |
108672-2.85 |
£5.95 |
|
| 2.90mm |
108672-2.90 |
£5.95 |
|
| 2.95mm |
108672-2.95 |
£5.95 |
|
| 3.00mm |
108672-3.00 |
£5.95 |
|
| 3.05mm |
108672-3.05 |
£5.95 |
|
| 3.10mm |
108672-3.10 |
£5.95 |
|
| 3.15mm |
108672-3.15 |
£5.95 |
|
| 3.20mm |
108672-3.20 |
£5.95 |
|
| 3.25mm |
108672 |
£5.95 |
|
| 3.30mm |
108673 |
£5.95 |
|
| 3.35mm |
108674 |
£5.95 |
|
| 3.40mm |
108675 |
£5.95 |
|
| 3.45mm |
108676 |
£5.95 |
|
| 3.50mm |
108677 |
£5.95 |
|
| 3.55mm |
108678 |
£5.95 |
|
| 3.60mm |
108679 |
£5.95 |
|
| 3.65mm |
108680 |
£5.95 |
|
| 3.70mm |
108681 |
£5.95 |
|
| 3.75mm |
108682 |
£5.95 |
|
| 3.80mm |
108683 |
£5.95 |
|
| 3.85mm |
108684 |
£5.95 |
|
| 3.90mm |
108685 |
£5.95 |
|
| 3.95mm |
108685-3.95 |
£5.95 |
|
| 4.00mm |
108687 |
£5.95 |
|
| 4.05mm |
108688 |
£5.95 |
|
| 4.10mm |
108689 |
£5.95 |
|
| 4.15mm |
108690 |
£5.95 |
|
| 4.20mm |
108691 |
£5.95 |
|
| 4.25mm |
108692 |
£5.95 |
|
| 4.30mm |
108693 |
£5.95 |
|
| 4.35mm |
108694 |
£5.95 |
|
| 4.40mm |
108695 |
£5.95 |
|
| 4.45mm |
108696 |
£5.95 |
|
| 4.50mm |
108697 |
£5.95 |
|
| 4.55mm |
108698 |
£5.95 |
|
| 4.60mm |
108699 |
£5.95 |
|
| 4.65mm |
108699-4.65 |
£5.95 |
|
| 4.70mm |
108699-4.70 |
£5.95 |
|
| 4.75mm |
108699-4.75 |
£5.95 |
|
| 4.80mm |
108699-4.80 |
£5.95 |
|
| 4.85mm |
108699-4.85 |
£5.95 |
|
| |
|
|
|
|
|
|
|
|
|
|
valve collets |
|
|
|
|
Valve Collet
Supersedes: 4149118
(512: BB, BBi) |
102862 |
£8.93 |
|
|
|
|
|
|
| |
Valve Seats |
|
|
|
|

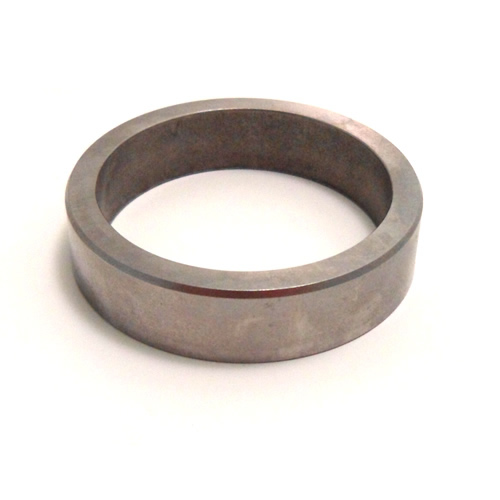

Exhaust Valve Seat
(512: BB, BBi) |
102859
|
£40.00 |
|
| |
|
|
|
|
|
valve guides |
|
|
|
|
Inlet & Exhaust Valve Guide
Aluminium bronze
44mm
(512: BB, BBi) |
102857 |
£26.50 |
|
|
Oversize Inlet & Exhaust Valve Guide
Special oversize O.D. +20thou
Aluminium bronze
44mm
(512: BB, BBi) |
102857-20 |
£37.94 |
|
|
|
|
|
|
|
cam followers |
|
|
|
|
Cam Follower
Supersedes: 4152447, 1960909, 9161340
(512: BB, BBi) |
100232 |
£16.56 |
|
|
|
|
|
|
|
cam bearing cap fixings |
|
|
|
|
Cam Bearing Cap Stud
High Tensile EN24T
Supersedes: 4146790, 4146561, 102754
(512: All) |
102735/A |
£7.26 |
|
|
|
|
|
|
|
Pulley |
|
|
|
|
Aluminium Cam Shaft Pulley Set, set of 4
2 x 108033 (Supersedes: 102586, 110994, 113097)
2 x 108034 (Supersedes: 102587, 110995, 113098)
(512: BB, BBi) |
30815110 |
£498.60 |
|
|
Cam Belt Bottom Drive Pulley
(512: BB)
|
104914 |
£235.83 |
|
|
Cam Belt Bottom Drive Pulley
(512: BBi)
|
112018 |
£176.40 |
|
|
Camshaft Drive Pulley Nut Upgraded to Hex Nut |
30815105 |
£9.95 |
|
|
Camshaft Drive Pulley Nut Ring Tool Type |
104919 |
£4.59 |
|
|
Camshaft Pulley Washer
(512: BB, BBi) |
106605
|
£16.80 |
|
| |
|
|
|
|
|
Cam Spares |
|
|
|
|
Camshaft Bolt
Short
Supersedes: 106606, 102776
(512: BB, BBi) |
4146779
|
£38.45 |
|
|
Camshaft Lock Tab Washer
Supersedes: 102777, 4201291
(512: BB, BBi)
|
4146781 |
£3.15 |
|
 |
Threaded Stud
(512:BBi) |
13517121
|
£3.10 |
|
|
|
|
|
|
|
Cam Cover GASKET Sets |
|
|
|
|
Cam Cover Gasket Set
Without seals
(512: BB, BBi)
|
F1215005 |
£70.77 |
|
|

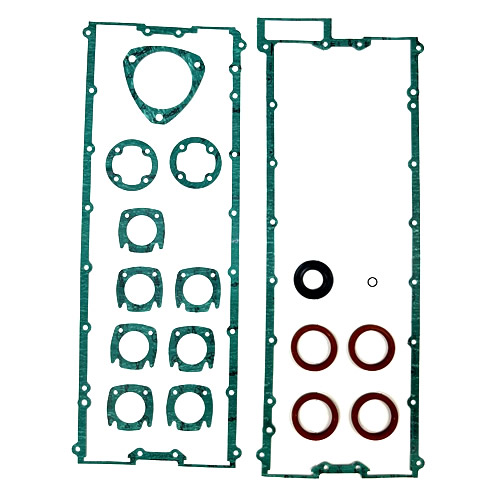

Cam Cover Gasket Set
With seals
(512: BB, BBi)
|
F1215015 |
£126.83 |
|
|
|
|
|
|
|
GASKETS |
|
|
|
|
RH Cam Cover Gasket
Supersedes: 102757, 106435
(512: BB, BBi)
|
147696 |
£21.45 |
|
|
LH Cam Cover Gasket
Supersedes: 102758, 103790, 106436
(512: BB, BBi)
|
147813 |
£28.45 |
|
 |
|
Upper Rear End Plate Gasket, right
1 Required
Supersedes: 147633, 102796
(512: BB, BBi) |
4146591 |
£3.27 |
|
|
Single Distributor Gasket
1 Required
(Upper Rear End Plate Gasket, left)
Supersedes: 103815, 147642
(512: BB, BBi) |
4146863 |
£3.70 |
|
 |
Lower Rear End Plate Gasket, right & left
With Silicone Beading
Supersedes: 132918
(512: BB, BBi)
|
150075 |
£13.14 |
|
|
Lower Rear End Plate Gasket, right & left
2 Required
Supersedes: 132918
(512: BB, BBi)
|
104694 |
£12.46 |
|
|
Cylinder Head Cover Gasket
(512: BB, BBi)
|
148860 |
£1.31 |
|
|
Cylinder Head Gasket
(512: BB, BBi)
|
144252 |
£0.48 |
|
|
|
|
|
|
|
End plate cover |
|
|
|
|
Left and Right Hand End Plate Cover
(512: BB, BBi)
|
103796 |
£281.04 |
|
|
|
|
|
|
|
Timing Cover |
|
|
|
|
Timing Cover Bolt
(512: BB, BBi)
|
11360221 |
£3.10 |
|
|
Timing Cover Spring Washer
(512: BB, BBi)
|
10517171
|
£0.35 |
|
|
|
|
|
|
|
Oil seals |
|
|
|
|
Camshaft Oil Seal, right & left
Viton
4 Required
Supersedes: 105055, 110314, 134714, 136526, 163987
(512: BB, BBi)
|
105389 |
£8.95 |
|
|
Distributor Oil Seal
1 Required
(512: BB, BBi) |
108009 |
£6.95 |
|
| |
|
|
|
|
| |
plugs |
|
|
|
 |
Aluminum Core Plug
Supersedes: 95184
(512: All) |
10269750 |
£1.49 |
|
|
|
|
|
|
|
O Rings |
|
|
|
|
Distributor ‘O’ Ring
1 Required
(512: BB, BBi) |
100015 |
£0.83 |
|
|
Vacuum Pump Coupling O Ring
(512: BB, BBi) |
105661 |
£0.82 |
|
| |
|
|
|
|
|
Oil Hose |
|
|
|
|
Cylinder Head Oil Hose
Supersedes: 104562
(512: All) |
122828 |
£26.40 |
|
| |
|
|
|
|
|
dowel |
|
|
|
|
Cylinder Head Dowel
(512: All) |
102725 |
£0.93 |
|
| |
|
|
|
|
| |
MIsc Nuts, Bolts & Washers |
|
|
|
|
Timing Gear Washer
Currently on manufacturer back order
(512: BB, BBi)
|
104915
|
£28.19 |
|
 |
M14 Spring Washer
|
M14WASH |
£0.27 |
|
 |
Washer
|
10519424 |
£0.02 |
|
|
Washer
D 8.15 - 17 x 2 mm
Supersedes: 10519601,10519620, 10519621, 93798
|
10519624 |
£0.13 |
|
| |
|
|
|
|
|
Domed Nut
M6 x 12
Supersedes: 151230
(512: BB, BBi)
|
100044 |
£0.54 |
|
|
CP Dome Nuts for Cam Covers. Pack of 10
Chrome-plate on stainless steel
Supersedes: 151230, 10044
|
24615170 |
£2.95 |
|
|
Cam Cover Washer, each
|
11197774 |
£0.07 |
|
|
Domed Cylinder Head Nut
Supersedes: 9100837, 400915
(512: BB, BBi)
|
100101
|
£9.95 |
|
|
Head Gasket Washer
(512: BB, BBi)
|
100100 |
£4.00 |
|
 |
Head Washer
(512: BB, BBi) |
30816240 |
£1.61 |
|
 |
Cylinder Head Stud
(512: All) |
13541324 |
£2.96 |
|
 |
Washer
Supersedes: 12648301, 61148700, 12643721, 12643704, 109684, 12643711, 14499324, 14499301
|
12643724 |
£0.05 |
|
|
Distributor Drive Pin
(512: BB, BBi)
|
100279 |
£13.37 |
|
|
|
|
|
|
| |
High Quality Yellow Nyloc nuts |
|
|
|
 |
7mm Spanner Size Nut
M4 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M4NUT |
£0.23 |
|
 |
10mm Spanner Size Nut, Standard
M6 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M6NUTSTD |
£0.24 |
|
 |
10mm Spanner Size Nut, Tall
M6 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M6NUTTALL |
£0.28 |
|
 |
13mm Spanner Size Nut, Standard
M8 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M8NUTSTD |
£0.24 |
|
 |
13mm Spanner Size Nut, Tall
M8 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M8NUTTALL |
£0.29 |
|
 |
17mm Spanner Size Nut
M10 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M10NUT |
£0.34 |
|
 |
19mm Spanner Size Nut
M12 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M12NUT |
£0.38 |
|
 |
22mm Spanner Size Nut
M14 x 1.5mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M14NUT |
£0.42 |
|
| |
|
|
|
|
|
|
|
|
|
