Carburettor and Fuel System Parts for Fiat Dino



Fiat Dino - Air Intake & Fuel Systems Whatever your fuel system, be it carburettor or injection, you'll find parts for it here, including air filters, fuel filters, fuel hose and clips.

Service kits

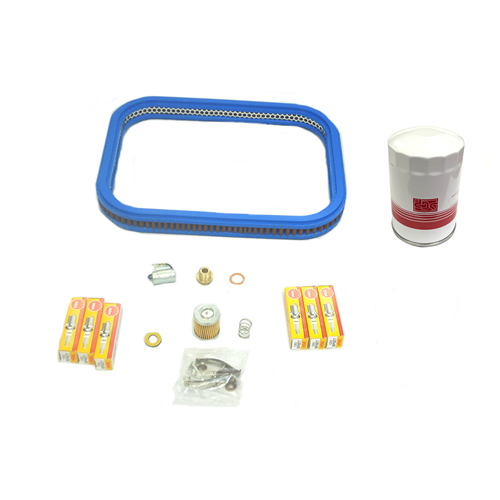

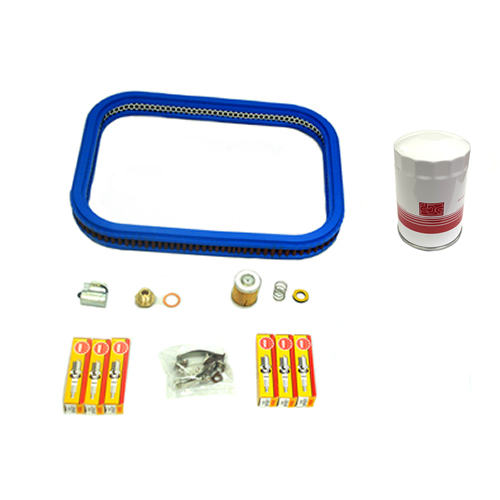

Full Service Kit
Includes all parts as pictured:
- 1 x Oil Filter
- 1 x Air Filter
- 1 x Fuel Filter
- 6 x Spark Plugs
- 1 x Sump Plug
- 1 x Sump Plug Washer
- 1 x Capacitor/Condensor
- 1 x Set of 3-Spring Ignition Points
(2000: All)

FD2000FSK

£136.74

FD2400FSK

£141.23

Carburettor

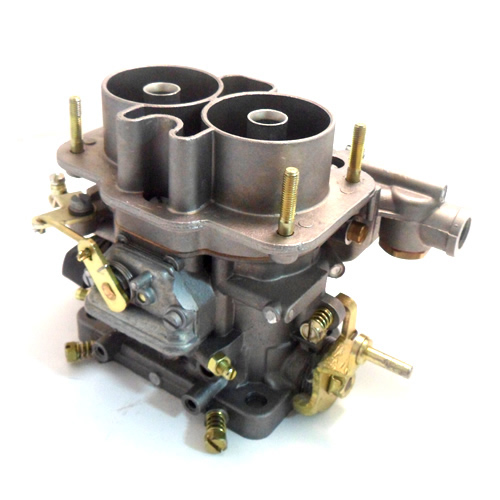

DCNF 40 Carburettor

DCNF40

£624.75

carburettor Linkage

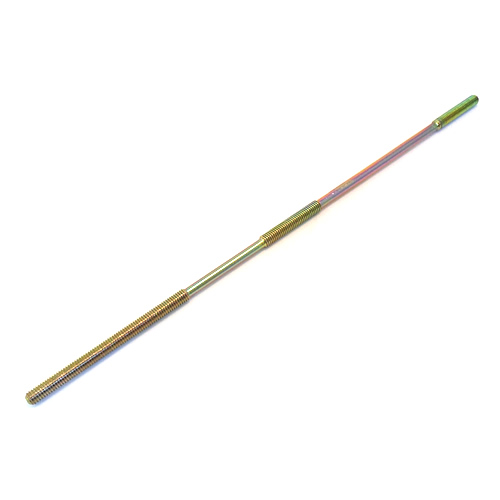

Carb Linkage Rod

4148640

£24.32

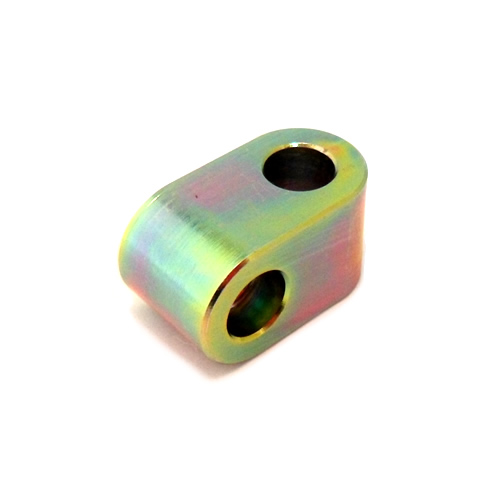

Carb Links

4148645

£27.53

M5 Washer

10519301

£0.25

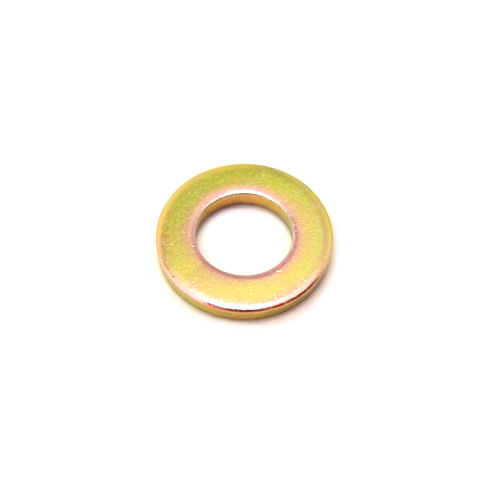

M6 Washer

11197777

£0.10

M6 Nut
Supersedes: 15896214

15896211

£0.23

Carburettor spares

DCNF Idle Jet 50

DCNFIJ50

£2.95

DCNF Idle Jet 55

DCNFIJ55

£2.95

DCNF Idle Jet 60

DCNFIJ60

£2.95

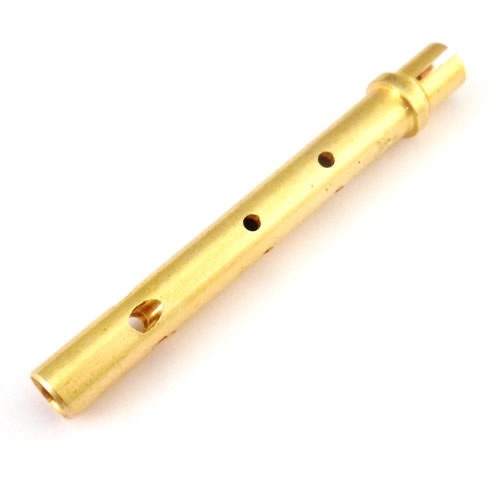

Emulsion Tube

24609205

£19.98

Pump Diaphragm
2000 2400

24609005

£18.90

Needle Valve Assy.
2000 2400

24609010

£8.62

Gasket
(2000: Early)

24609015

£6.45

Gasket
(2000: Late); (2400: All)

24609020

£3.95

Butterfly Shaft Bearing

30809060

£4.85

Carburettor Base Spacer
1 required per carburettor (3 req. per car)
(2000: Early 3 Bolt Carb Type)

9180783

£62.00

Carburettor Base Spacer Gasket
2 required per base plate (6 req. per car)
Supersedes: 4146829, 9180878
(2000: Early 3 Bolt Carb Type)

4146830

£8.02

Carburettor Base Plate Spacer
Supersedes: 103786
(2000: Late); (2400: All)

4185358

£22.25

Carburettor Base Plate Gasket
To fit part #4185358, #103786
(2000: Late); (2400: All)

24609025

£6.48

Carburettor Rod Bearing

95910005

£8.76

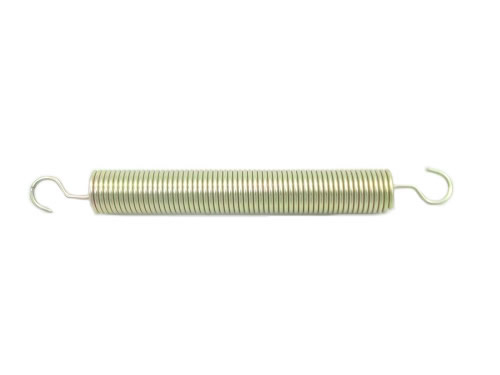

Carburettor Throttle Linkage Return Spring
Supersedes: 9180972

102951

£9.95

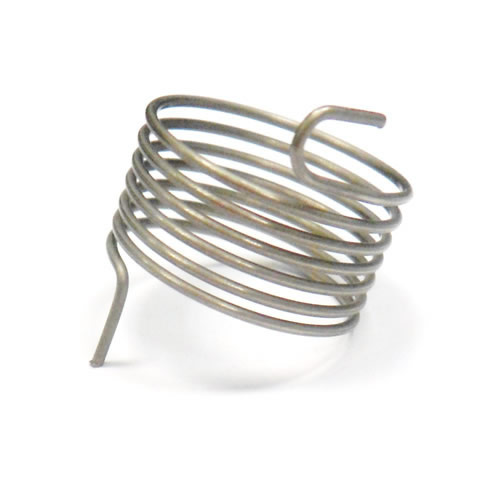

Throttle Spindle Return Spring

47610.043

£2.45

Air Cleaner Distance Spacer
Upgraded Stainless Steel
Fits with part #103923
Supersedes: 4153761, 9182022
(2000: All); (2400: All)

103925

£7.80

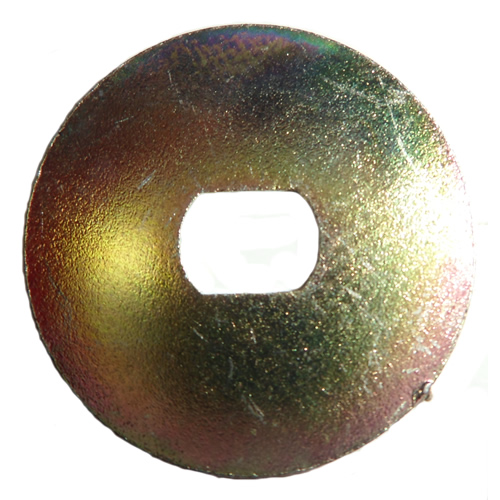

Carburettor Spindle Washer (Round)

24609160

£3.45

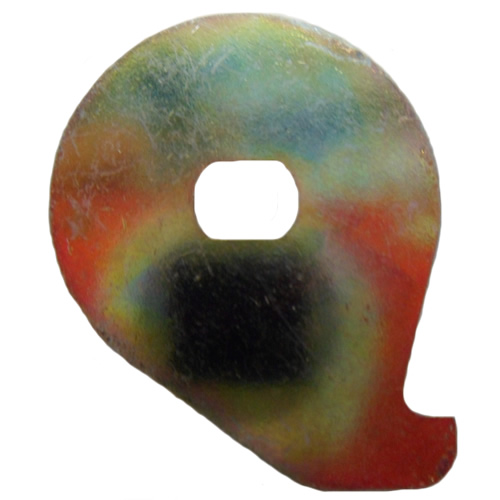

Carburettor Spindle Washer (Snail Cam)

24609165

£4.25

Carb Idle Jet O'Ring

41565.002

£0.91

Fuel Banjo Bolt Fibre Washer
(2400: All); (246: All); (308: All)

FER09035

£0.98

Carburettor Air Filter Mount
Supersedes: 4177742, 9182020
(2400: All)

103923

£15.95

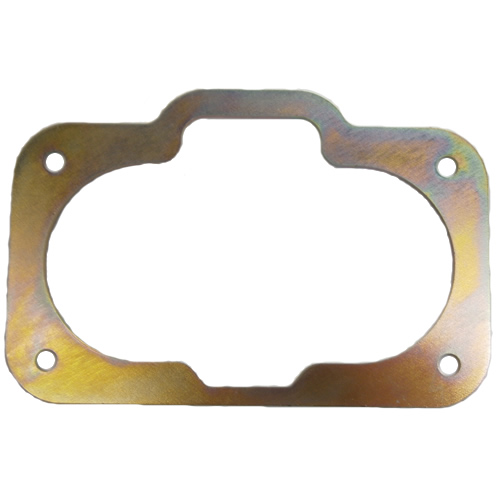

Carburettor Top Plate

9182021

£12.95

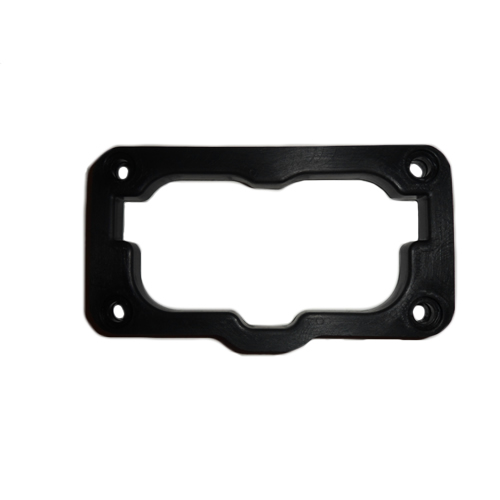

Carburettor Air Filter Mount
(2000: All)

4153759

£32.95

Carburettor Top Plate
(For Three Bolt Mounting Carbs)

4153760

£11.60

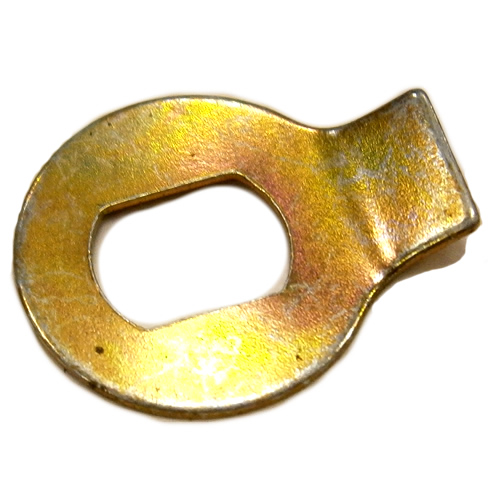

Carb Spindle Lock Tab

FER09040

£1.48

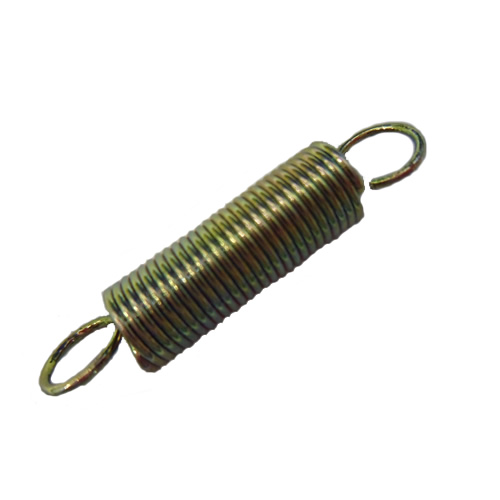

Carburettor Return Spring
(Diaphragm Side Of Carb)

9916338

£5.84

Pump Cam DCNF
3 Required Per Car

24609170

£19.85

Brass Float DCNF

24609175

£48.27

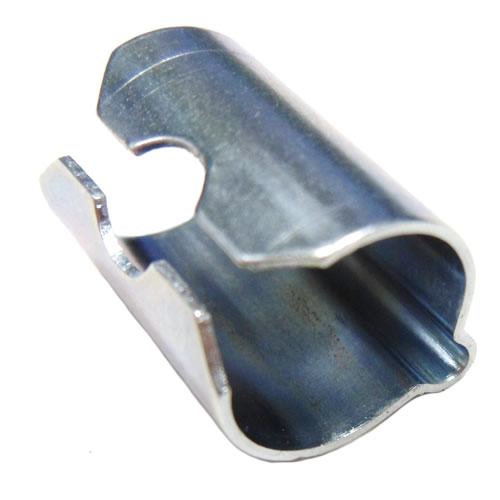

Throttle Rod Clip

10124776

£2.69

Choke cable

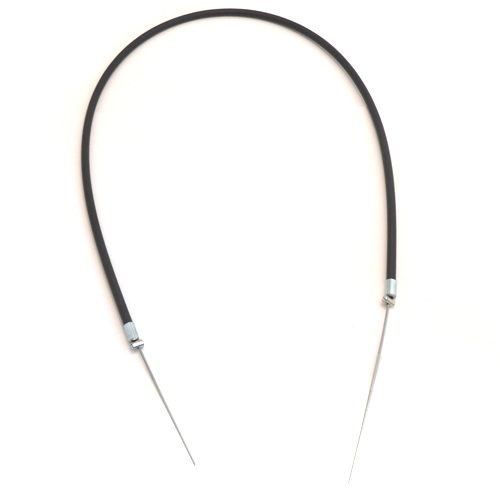

Choke Cable

FIA09145

£17.29

carb rebuild kit

Carburettor Rebuild Kit 40DCNF
Contains: baseplate, gasket, needle valve & pump diaphragm
Per Carburettor
(2000: Late); (2400: All)

24609035

£44.95

Carburettor Rebuild Kit for 3 Carbs
For three Carburettors
(2000: Late); (2400: All)

24609040

£49.95

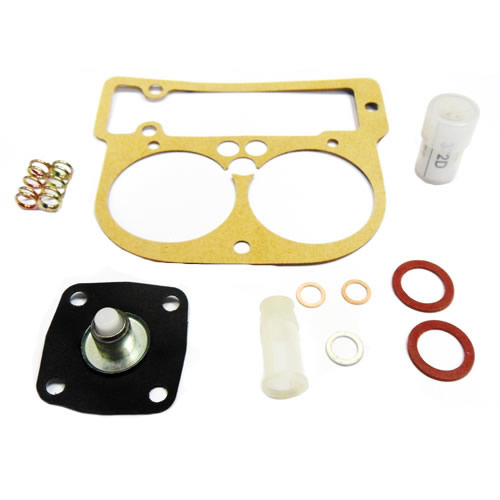

Carb Rebuild Kit - 206 and early 246
Early for 40 DCN 3 Bolt Carbs
Per Carburettor

24609041

£16.85

Carb Rebuild Kit - 2000
Early for 40 DCN 3 Bolt Carbs
For three Carburettors

24609034

£44.95

Carb linkage kit

Carburettor Modification Kit
Improves poor original linkage setup

24609055

£49.50

Carb stud kit

Carburettor Top Stud Repair Kit (Fits all 40 DCNF carbs)
Carefully designed to solve the problem of loose and stripped studs between the carburettor and air cleaner. Includes drill and tap to enlarge thread size to M6.00.

FIA09055

£39.95

fuel tank & Spares

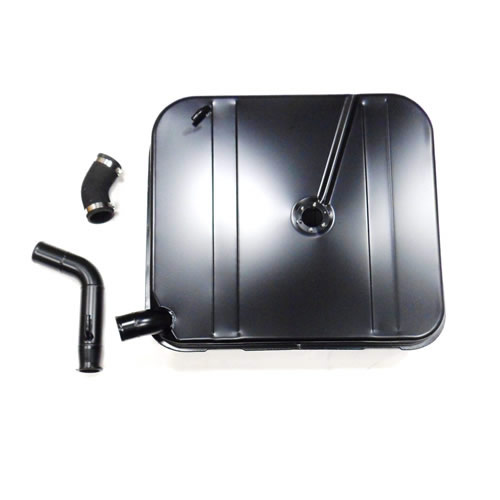

Fuel Tank
High quality fuel tank re-made in aluminium to original specifications.
(2000: Spyder)

4153035

£1695.00

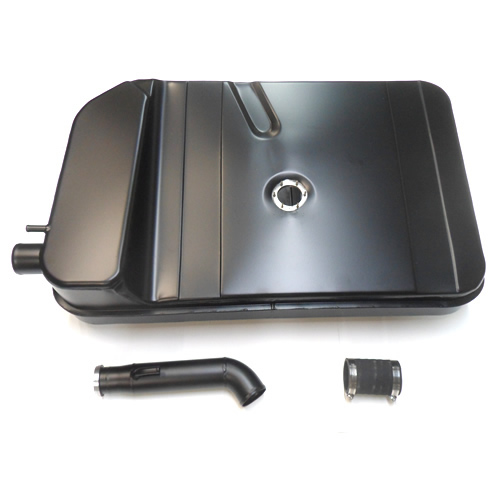

Fuel Tank
High quality fuel tank re-made in aluminium to original specifications.
(2400: All)

4219811

£1995.00

Fuel Gauge Sender With Return Pipe
Not suitable for use with E10 petrol
(2400)

FIA09150

£95.41

Fuel Gauge Sender Unit
Hose Included
(2400)

FIA09151

£114.11

Lockable fuel cap

Lockable Fuel Cap

FIA09130

£34.95

Standard Petrol Filler Cap
Screw thread

24609145

£14.95

filler cap

Oil / Fuel Filler Cap Seal

FER09002

£9.95

Standard Petrol Filler Cap
Screw thread

24609145

£14.95

Petrol Filler Neck Rubber
Not suitable for use with E10 petrol

FIA04385

£99.95

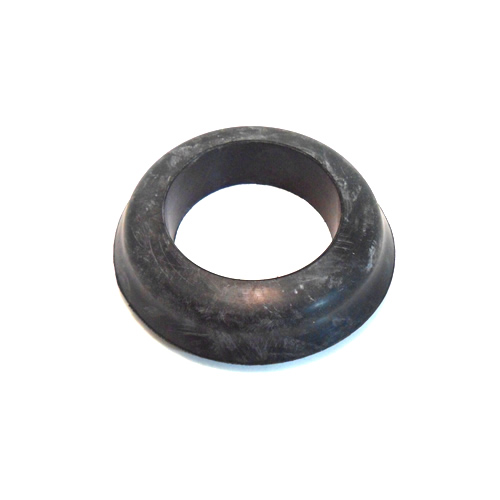

Fuel Filler Neck Rubber

FIA09140

£38.00

Fuel PUMP and filter/regulators

Fuel Pump 7psi
Facet
(2000: All); (2400: All)

FIA09090

£117.26

Brass Unions, pair
7psi Pumps

30809115

£7.98

Fuel Regulator & Filter
40.5mm Filter

FIA09065

£79.95

Fuel Filter
32.5mm

FIA09060

£8.95

Fuel Filter
40.5mm

FIA09066

£8.95

Fuel Filter
46mm

FIA09070

£9.95

Fuel Filter Bowl
Plastic
To fit filter FIA09065

FIA09071

£12.95

Fuel Regulator Glass Bowl Gasket

95340001/GBG

£5.68

Air filters

Air Filter
(2000: All); (2400: All)

4146838

£49.95

Air Filter Housing Gasket
For cars with airbox #4166567
(2000: early)

4170008

£12.95

Air Filter Large Knurled Nuts. Pack of 3
(2000: All); (2400: All)

4170006

£12.95

Air Filter Nuts
(2000: All); (2400: All)

FIA09135

£0.89

High performance air filters

Uprated Air Filter
Induction Technology
JC50 50mm 65mm
- High Performance
- These filters are manufactured by Induction Technology Ltd., and are highly efficient in operation. They are extremely successful in competition, and are fitted to many championship winning cars.
(2000: 4 bolt carburettors Only); (2400: All)

4146838-I

£149.50
